SMD Elec-Magnet Transducer

SMD electromagnetism buzzer EET8540AS-3.6L-2.731-16-R High-Output Alarm Annunciator

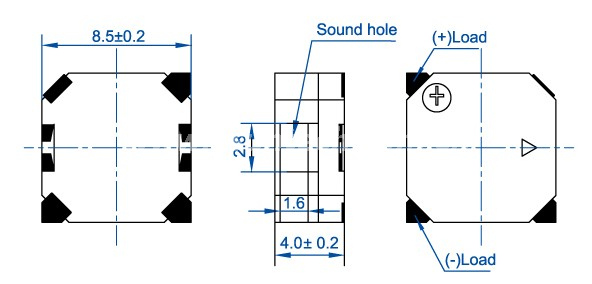

  • 8.5mmx8.5mmx4mm 3.6V 2731hz 8540 8504 SMD passive electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esun

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

8.5mmx8.5mmx4mm 3.6V  2731hz 8540 8504  SMD passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EET8540AS-3.6L-2.731-16-R
Rated Voltage (V)3.6
Max Input Voltage (V)2~4
Coil Resistance (Ω)16±3
Resonance Frequency (Hz)2731
*Sound Pressure Level (dB/min)85at10cm at Rated Voltage
*Current Consumption (mA/max)100 at Rated Voltage
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.8
Housing MaterialLCP
RohsYes

3
