SMD Elec-Magnet Transducer

SMD electromagnetic transducer EET1255S-1.5S-2.048-15-R 1.5v magnetic buzzer

  • 12mmx12mmx5.5mm 1.5V 1255 SMD passive electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

12mmx12mmx5.5mm 1.5V 1255  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

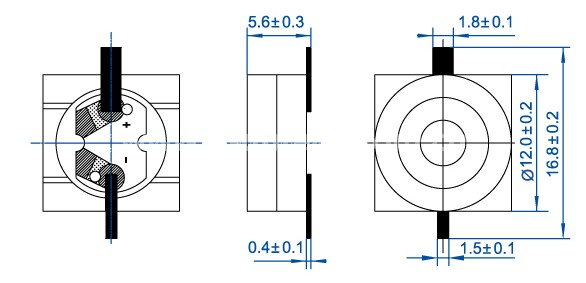

Model No.EET1255S-1.5S-2.048-15-R
Rated Voltage (V)1.5
Max Input Voltage (V)1~2
Resonance Frequency (Hz)2048
Coil Resistance (Ω)16±3
*Sound Output at 10cm (dB)≥80
*Current Consumption (mA) ≤40
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)1.5
Housing MaterialLCP
RoHSYes

3
