SMD Elec-Magnet Transducer

SMD electromagnetic transducer EET1085S-3.6L-2.731-16-R 3.6v magnetic buzzer

  • 10mmx8.5mmx2.0mm 3.6V 1085 SMD passive electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Mode

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

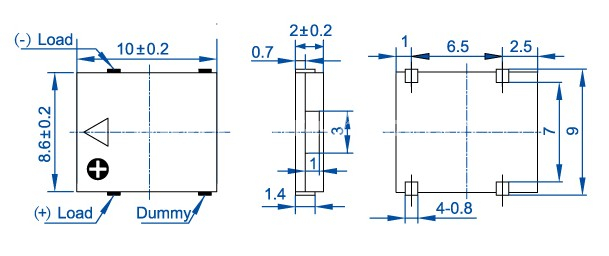

10mmx8.5mmx2.0mm 3.6V 1085  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EET1085S-3.6L-2.731-16-R
Rated Voltage (V)3.6
Max Input Voltage (V)2.5~4.5
Coil Resistance (Ω)  16±3
Resonance Frequency (Hz)2048
 *Sound Output at 10cm (dB)≥80
 *Current Consumption (mA)≤100
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.4
Housing MaterialLCP
RoHSYes
