SMD Elec-Magnet Transducer

SMD electromagnetic buzzer EET9045S-05S-2.731-32-R 5V buzzer supply

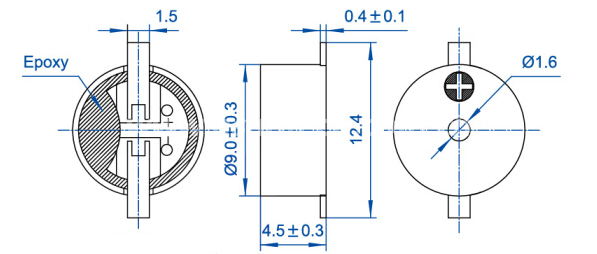

  • 9mmx9mmx4.5mm 3V 2731hz 9045 SMD passive electromagnetic transducer & buzzer round buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co L

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

9mmx9mmx4.5mm 3V  2731hz 9045   SMD passive electromagnetic transducer & buzzer round  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EET9045S-05S-2.731-32-R
Rated Voltage (V)5
Operating Voltage (V)3～7
Resonant Frequency (Hz)2731
Coil Resistance (Ω)32±5
*Sound Output at 10cm (dB)≥85
*Current Consumption (mA)≤80
Operating Temperature (℃)-40～+80
Storage Temperature (℃)-40～+85
Weight (g)0.6
Case material and colourLCP/ Black
RohsYes
