SMD Elec-Magnet Transducer

SMD electromagnetic buzzer EET1411AS-05L-2.731-40-R 5v electromagnetism transducer

  • 14mmx11mmx3mm 5V 1411 SMD passive electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model No.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1411AS-05L-2.731-40-R

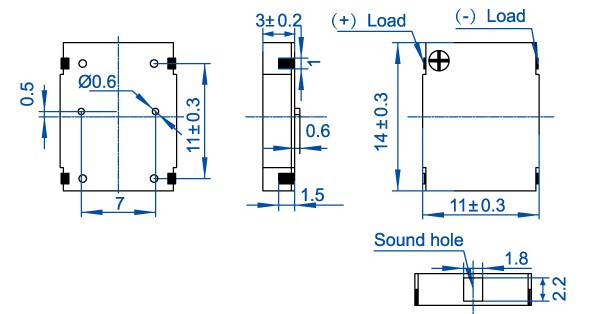

  • Diameter: 14mmx11mmx3mm
  • PDF
  • Description
  • Order

Product Description

14mmx11mmx3mm 5V 1411  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EET1411AS-05L-2.731-40-R
Rated Voltage (V)5
Operating Voltage (V)3~7
Rated Current (mA)≤100
Resonance Frequency (Hz)2731
Coil Resistance (Ω)40±4

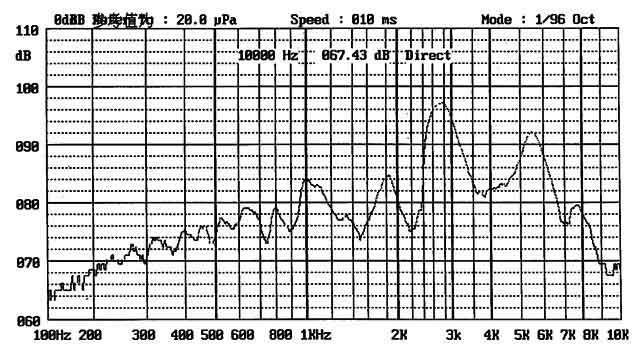

*Sound Output at 10cm (dB)≥90
*Current Consumption (mA)≤40
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.3
Housing MaterialLCP
