SMD Elec-Magnet Transducer

SMD electromagnetic buzzer EET1033BS-3.6L-273-18-R 3.6V magntic transducer

  • 10mmx10mmx3.2mm 3.6V 1033 SMD passive electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1033BS-3.6L-273-18-R

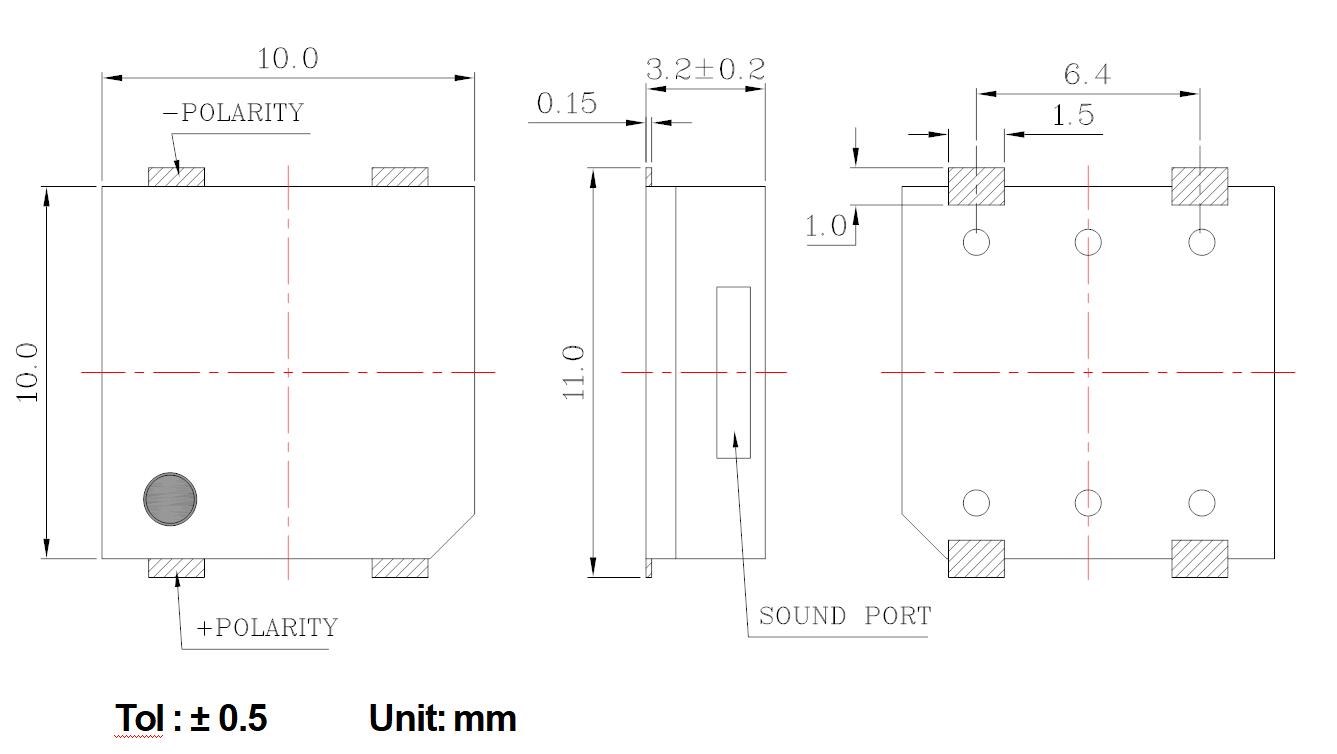

  • Diameter: 10mmx10mmx3.2mm
  • PDF
  • Description
  • Order

Product Description

10mmx10mmx3.2mm 3.6V 1033  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.






Model No.EET1033BS-3.6L-273-18-R
Rated Voltage (V)3.6
Operating Voltage (V)2.5～4.5

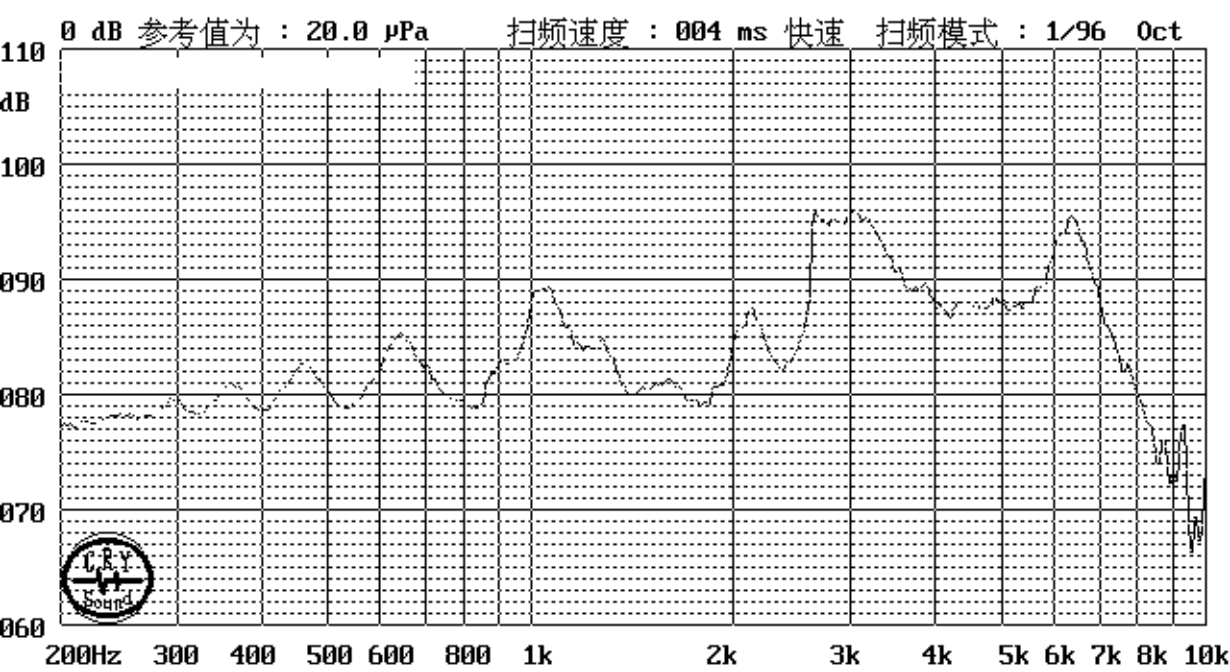

Resonant Frequency (Hz)2730
Coil Resistance (Ω)18±3
*Sound Output at 10cm (dB)≥93
*Current Consumption (mA)≤90
Operating Temperature (℃)-20～+85
Storage Temperature (℃)-30～+85
Weight (g)0.8
Housing MaterialLCP
RoHSYes
