SMD Elec-Magnet Transducer

SMD buzzer EET8540S-05-4.0-13-R High-Output Alarm Annunciator

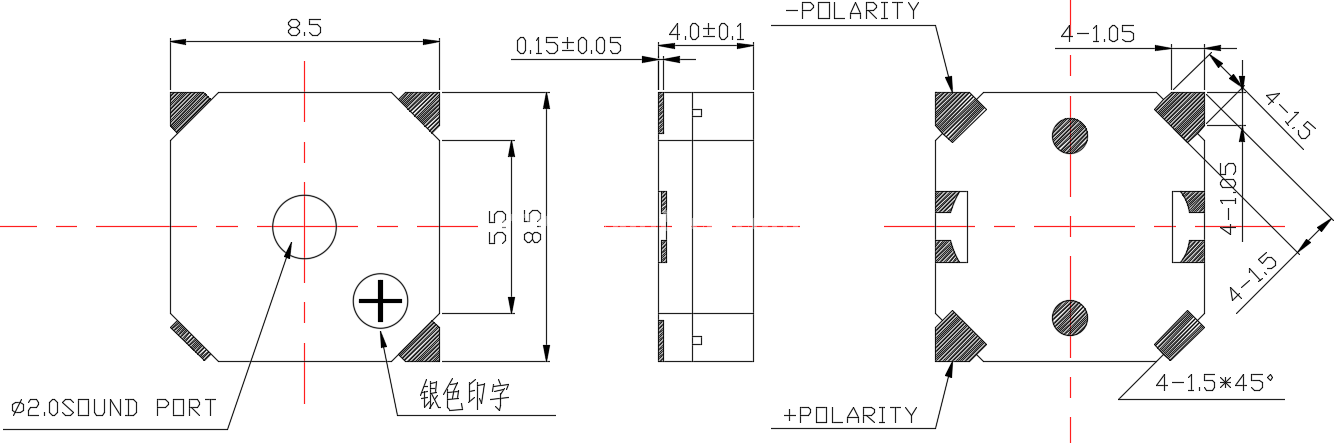

  • 8.5mmx8.5mmx4mm 5V 4000hz 8540 8504 SMD passive electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntec

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

8.5mmx8.5mmx4mm 5V 4000hz 8540 8504  SMD passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.



Model No.EET8540S-05-4.0-13-R
Rated Voltage (V)5
Max Input Voltage (V)1~6
Coil Resistance (Ω)13±3
Resonance Frequency (Hz)4000
*Sound Pressure Level (dB/min)95 at 10cm at Rated Voltage
*Current Consumption (mA/max)150 at Rated Voltage
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.8
Housing MaterialLCP
RohsYes
