Electro Magnetic Transducer

small magnetic transducer EET1260 1.5 volt High-Output Alarm buzzer

  • 12mmx6mm 1.5V 6.5 ohm 2731hz 1260 1206 passive electromagnetic transducer & buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1260B-1.5O-2.731-6.5-6.5-R

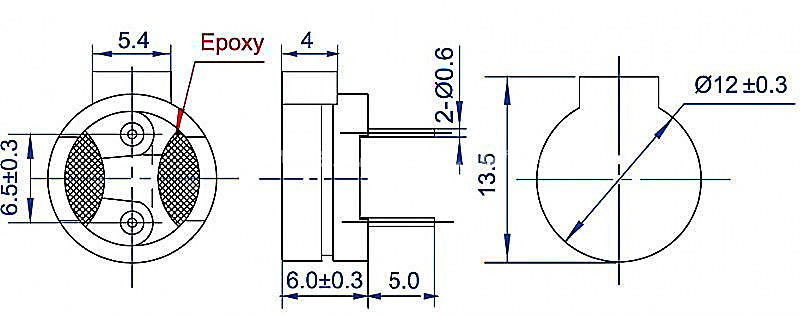

  • Diameter: 12mmx6mm
  • PDF
  • Description
  • Order

Product Description

12mmx6mm 1.5V   6.5 ohm 2731hz 1260 1206 passive electromagnetic transducer & buzzer   buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.





2



ModelEET1260B-1.5O-2.731-6.5-6.5-R
Rated Voltage (V)1.5
Operating Voltage (V)1～2
Resonant Frequency (Hz)2731
Coil Resistance (Ω)6.5±1

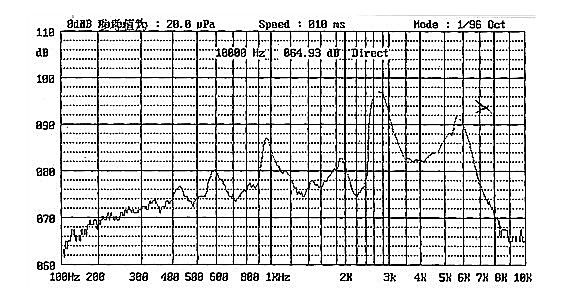

*Sound Output at 10cm (dB)Min90
*Current Consumption (mA)≤70
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight (g)1.5
RohsYes
