Piezo Transducer

Piezoelectric speaker buzzer EPG5118 anti mosquito buzzer

  • 51mmx18mm mouting piezo speaker buzzer 2.83V 20khz DG51 anti mouse mosquito dog annunciator passive piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Ch

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPG5118

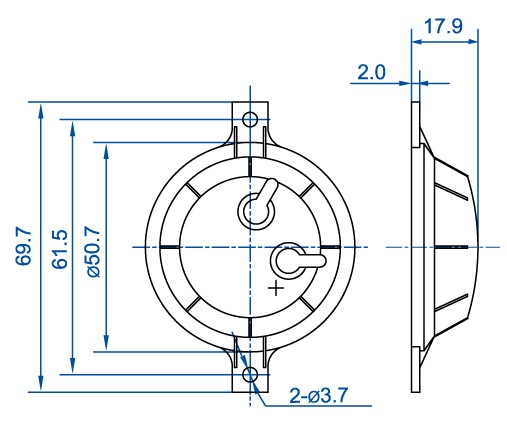

  • Diameter: 51mmx18mm
  • PDF
  • Description
  • Order

Product Description

51mmx18mm mouting piezo speaker buzzer 2.83V 20khz DG51 anti mouse mosquito dog annunciator  passive piezo transducer & buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPG5118
Rated Voltage (Vrms)2.83
Operating Voltage (Vrms)30 Max

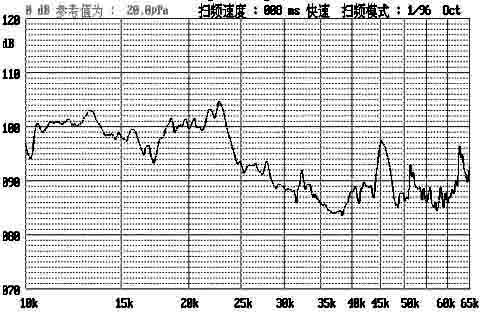

*Resonant Frequency (Hz)20000±500
Capacitance 120Hz (PF)2500~60000
*Sound Output at 30cm (dB)≥100
Operating Temperature  (℃)-20～+70
Storage Temperature  (℃)-30～+80
Weight  (g)7
RohsYes
