Piezo Buzzer

Piezoelectric buzzer EPB3610-12-3.0-R 6V 9 V 12V anunciator buzzer

  • 36mmx31mm Piezo buzzer 6V 9V 12V 24V 3000hz 3610 3630 alarm annunciator transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

36mmx31mm Piezo buzzer  6V 9V 12V 24V 3000hz 3610 3630 alarm annunciator  transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

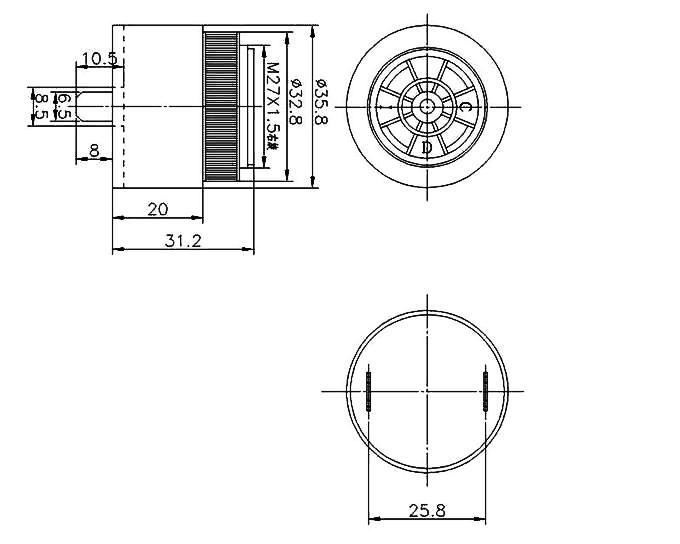

3610 drawing


Model No.EPB3610-12-3.0-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～28
*Resonant Frequency (Hz)3000±500
*Sound Output at 10cm (dB)≥95
*Current Consumption (mA)≤10
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight (g)40
Housing Material:ABS
Rohs Yes

3610
