Piezo Transducer

Piezoceramic buzzer EPT2580L-TB-12-0.4-23-F/BC17L 400HZ piezo transducer

  • 25mmx25mmx8mm pin buzzer 12V 400hz 2580 2508 passive piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model No.EPT2

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT2580L-TB-12-0.4-23-F/BC17L

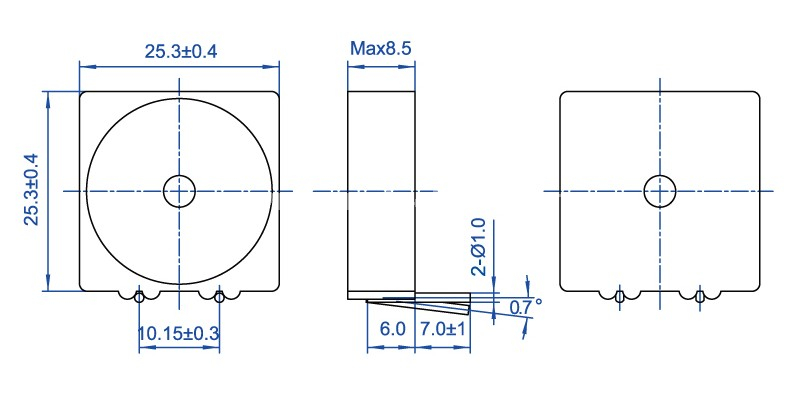

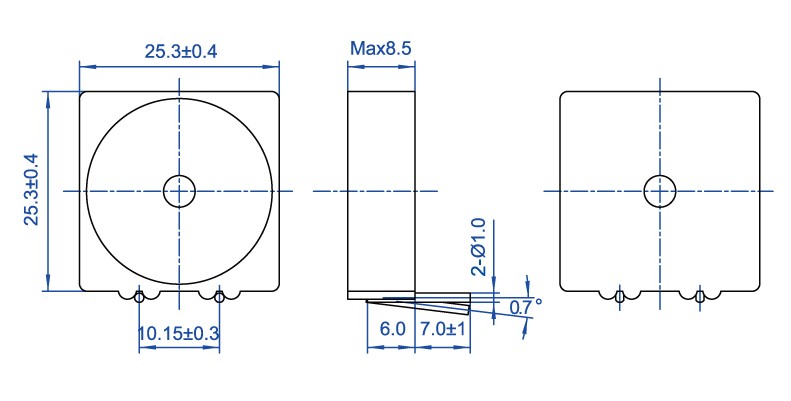

  • Diameter: 25mmx25mmx8mm
  • PDF
  • Description
  • Order

Product Description

25mmx25mmx8mm pin buzzer  12V 400hz  2580 2508 passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPT2580L-TB-12-0.4-23-F/BC17L
Rated Voltage (Vp-p)12
Resonance Frequency (Hz)400
Max Input Voltage (Vp-p)3~40
*Rated Current (mA)≤3
*Sound Output at 10cm (dB)≥79
Capacitance 120Hz (PF)23000±30%
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight(g)0.8
RoHSYes
