Piezo Transducer

Piezo wireless annunciator EPT4524-TP-12-3.2-250-R 12V high-output alarm buzzer manufacturer

  • 45mmx24mm pin buzzer 3V 6V 12V 3200hz 4524 alarm annunciator passive piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT4524-TP-12-3.2-250-R
  • Diameter: 45mmx24mm
  • PDF
  • Description
  • Order

Product Description

45mmx24mm pin buzzer 3V 6V 12V 3200hz 4524 alarm annunciator  passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPT4524-TP-12-3.2-250-R
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)3～50
Resonant Frequency (Hz)3200±500
Capacitance 120Hz (PF)250000±30%

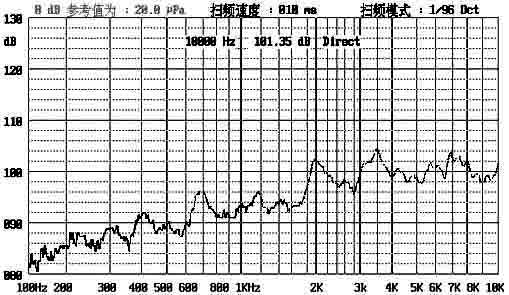

*Sound Output at 30cm (dB)≥95
*Current Consumption (mA)≤100
Operating Temperature (℃)-40～+95
Storage Temperature (℃)-40～+105
Weight (g)11
RoHSYes
