Piezo Transducer

Piezo wireless annunciator EPT4410-TA-05-0.9-70-25.4-R 5V high-output alarm buzzer manufacturer

  • 44mmx10mm pin buzzer 3V 6V 12V 900hz 4410 4401 alarm annunciator passive piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT4410-TA-05-0.9-70-25.4-R

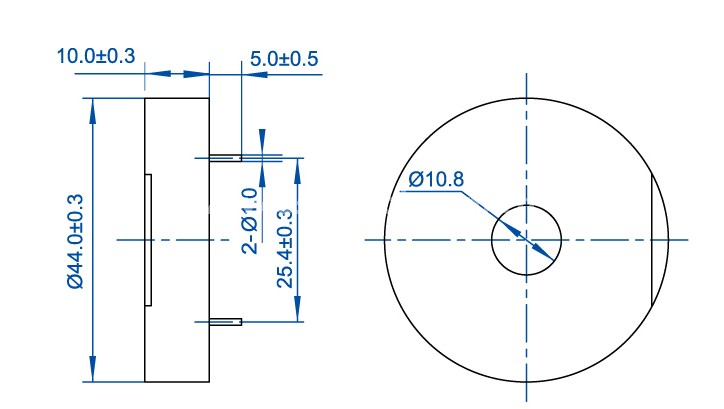

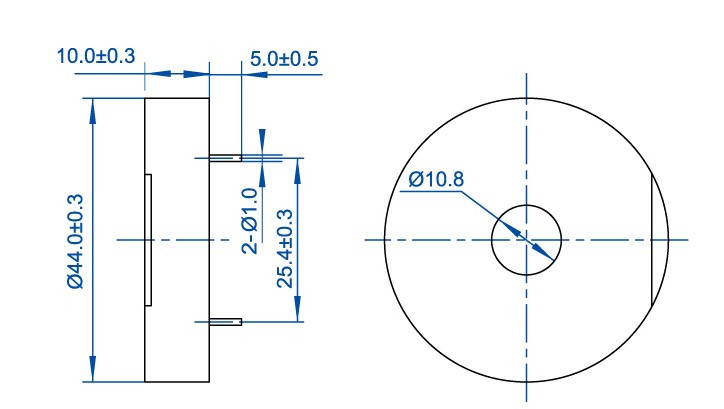

  • Diameter: 44mmx10mm
  • PDF
  • Description
  • Order

Product Description

44mmx10mm pin buzzer 3V 6V 12V 900hz 4410 4401 alarm annunciator  passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPT4410-TA-05-0.9-70-25.4-R
Rated Voltage (Vp-p)5
Operating Voltage (Vp-p)1～30

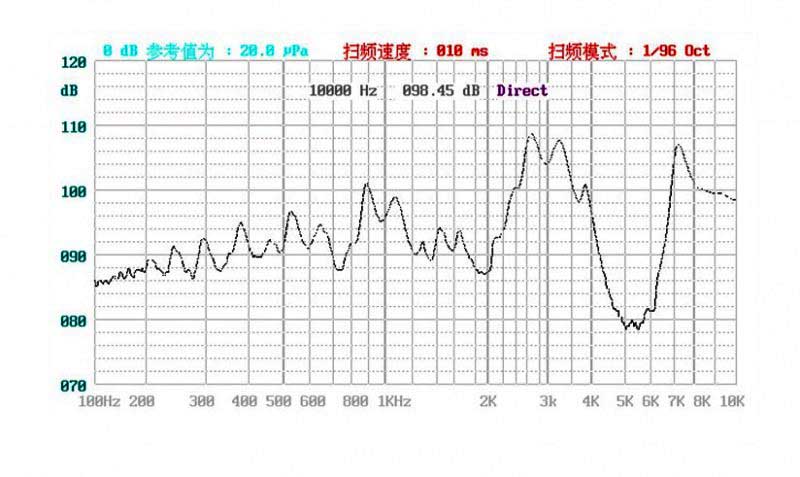

Resonant Frequency (Hz)900±500
Capacitance 120Hz (PF)70000±30%
*Sound Output at 10cm (dB)≥85
*Current Consumption (mA)≤5
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight (g)10
Housing MaterialABS
RoHSYes
