Piezo Transducer

Piezo wireless annunciator EPT3075AD-TO-10-2.5-20-15.0-R 12V high-output alarm buzzer

  • 30mmx7.5mm pin buzzer 3V 6V 12V 2500hz 3075 alarm annunciator passive piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT3075AD-TO-10-2.5-20-15.0-R

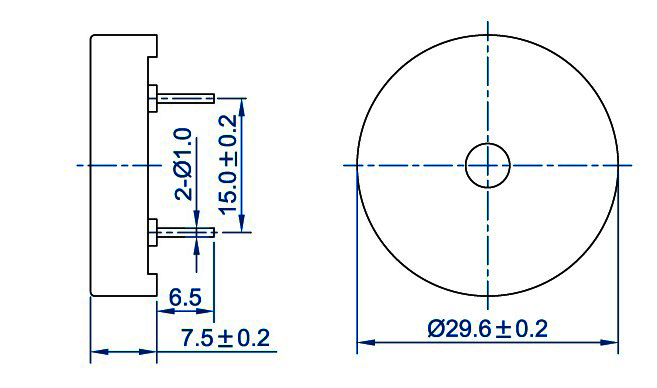

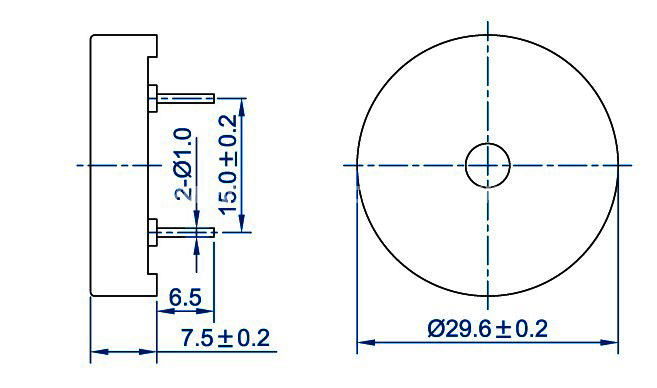

  • Diameter: 30mmx7.5mm
  • PDF
  • Description
  • Order

Product Description

30mmx7.5mm pin buzzer 3V 6V 12V 2500hz 3075 alarm annunciator  passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPT3075AD-TO-10-2.5-20-15.0-R
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)1～30
Resonant Frequency (Hz)2500±500
Capacitance 120Hz (PF)20000±30%

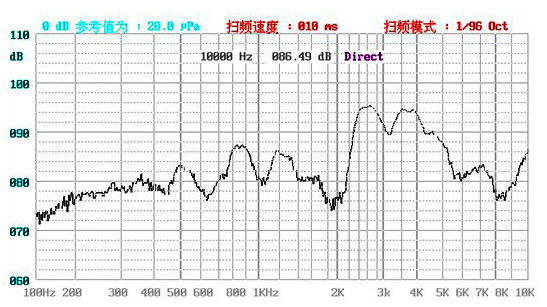

*Sound Output at 10cm (dB)≥85
*Current Consumption (mA)≤10
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight (g)3.2
Case material and colourPPO/ Black
RohsYes
