Piezo Transducer

Piezo wireless annunciator EPT3011 high-output alarm buzzer

  • 30mmx11mm pin buzzer 3V 6V 12V 2200hz 3011 alarm annunciator passive piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT3011-TA-03-2.2-35-13.0-R

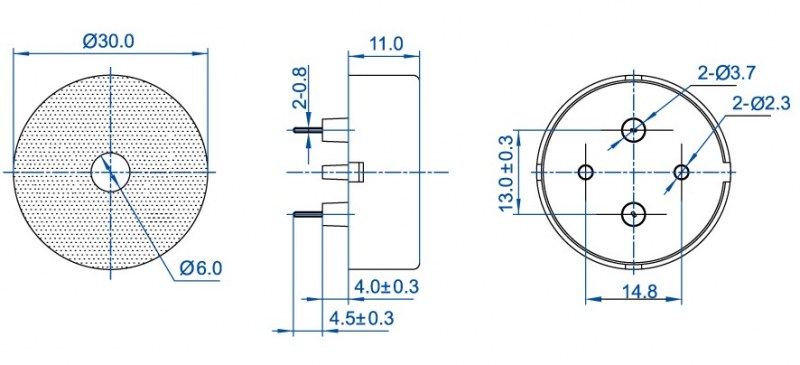

  • Diameter: 30mmx11mm
  • PDF
  • Description
  • Order

Product Description

30mmx11mm pin buzzer 3V 6V 12V 2200hz 3011 alarm annunciator  passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Part NumberEPT3011-TA-03-2.2-35-13.0-R
Rated   Voltage (Vp-p)3
Operating   Voltage (Vp-p)1～30
*Rated   Current (mA)≤3
Capacitance   at 120Hz (pF)35000±30%

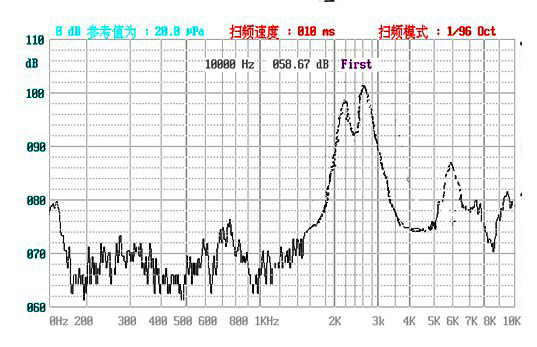

*Sound   Output at 10 cm (dB)≥85
Resonant   Frequency (Hz)2200±500
Operating   Temperature (℃)-20～+70
Weight   (g)6
Case   material and colourABS
RoHSYes
