Piezo Buzzer

Piezo wired buzzer EPB4526W1005-TA-12-2.9-R 12 volt siren buzzer

  • 45mmx26mm continuous pulse tone sound buzzer 6V 9V 12V 24V 2900hz 4526 siren alarm annunciator active piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPB4526W1005-TA-12-2.9-R

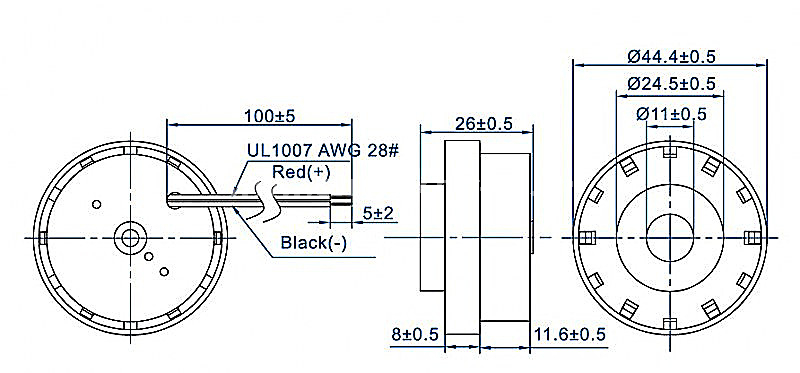

  • Diameter: 45mmx26mm
  • PDF
  • Description
  • Order

Product Description

45mmx26mm continuous pulse tone sound buzzer  6V 9V 12V 24V 2900hz 4526 siren alarm annunciator active piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2


ModelEPB4526W1005-TA-12-2.9-R
Rated Voltage (VDC)12
Operating Voltage (VDC)1～20
*Rated Current (mA)≤35
*Sound Output at 30cm (dB)≥105
*Resonant Frequency (KHz)2.9±0.5
Operating Temperature (℃)-20 ～ +60
Storage Temperature (℃)-30 ～ +70
RoHSYes
