Piezo Buzzer

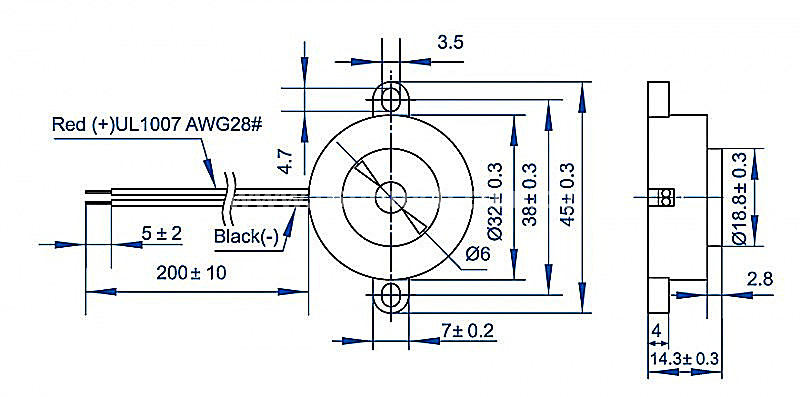

Piezo wired buzzer EPB3215SW1005-TA-12-3.9-R continuous tone buzzer

  • 32mmx15mm continuous pulse tone sound buzzer 6V 9V 12V 24V 3900hz 3215 alarm annunciator active piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Chang

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

32mmx15mm continuous pulse tone sound buzzer  6V 9V 12V 24V 3900hz 3215 alarm annunciator active piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2


ModelEPB3215SW1005-TA-12-3.9-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～20
*Rated Current (mA)≤12
*Sound Output at 30 cm (dB)≥95
*Resonant Frequency (Hz)3900±500
ToneContinuous
Operating Temperature (℃)-20 ～ +65
Storage Temperature (℃)-30 ～ +75
Weight (g)8
Housing MaterialABS
RoHSYes
