Piezo Buzzer

Piezo wired buzzer EPB3020W1305-TC-12-3.5-R 6V 12V active buzzer supplier China

  • 30mmx20mmwire mounting buzzer 6V 12V 24V 3500hz 3020 3002 alarm annunciator active piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

30mmx20mmwire mounting buzzer  6V 12V 24V 3500hz 3020 3002 alarm annunciator active piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

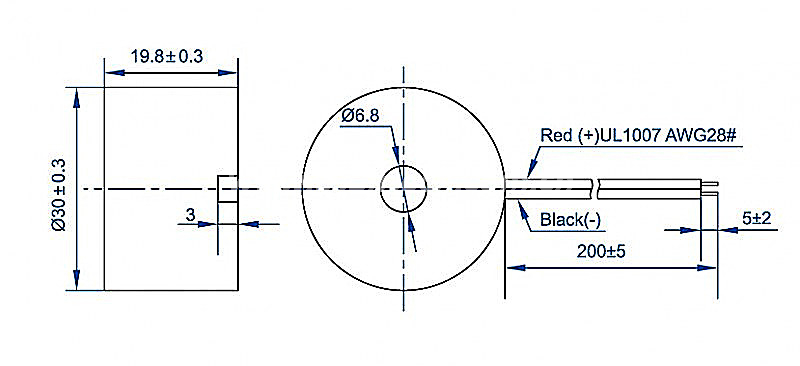

Model No.EPB3020W1305-TC-12-3.5-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～20
*Resonant Frequency (Hz)3500±500
*Sound Output at 10cm (dB)≥100
*Current Consumption (mA)≤12
Tone Pulse:22±6次/10秒
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)8
RoHSYes

3
