Piezo Buzzer

Piezo wired buzzer EPB2616W60-TA-12-2.8-R 12 volt siren buzzer

  • 26mmx16mm continuous pulse tone sound buzzer 12V 24V 2800hz 2616 siren alarm annunciator active piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Chang

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

26mmx16mm continuous pulse tone sound buzzer  12V 24V 2800hz 2616 siren alarm annunciator active piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

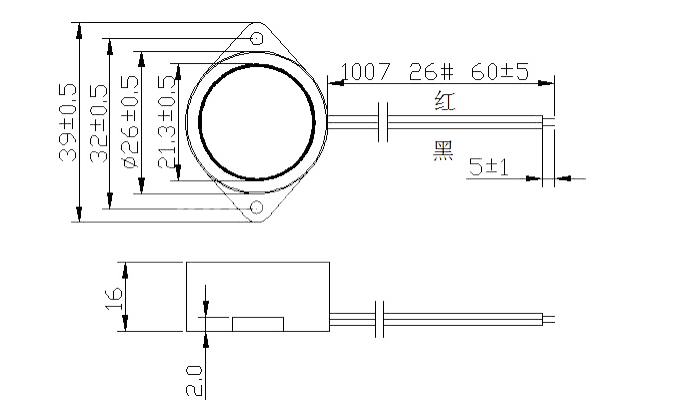

2616 drawing 2


ModelEPB2616W60-TA-12-2.8-R
Rated Voltage (VDC)12
Operating Voltage (VDC)6～24
*Rated Current (mA)≤35
*Sound Output at 30cm (dB)≥85
*Resonant Frequency (KHz)2.8±0.5
Operating Temperature (℃)-20 ～ +75
Storage Temperature (℃)-30 ～ +85
RoHSYes

2616 curve
