Piezo Transducer

Piezo speaker buzzer EPG4113 anti mosquito buzzer

  • 41mmx13mm piezo speaker buzzer 2.83V 20khz DG41 anti mouse mosquito dog annunciator passive piezo transducer & buzzer with wire high quality alarm buzzer,alarm for household electrical appliances -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPG4113

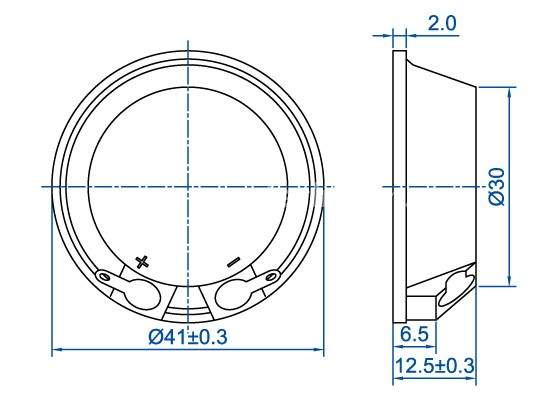

  • Diameter: 41mmx13mm
  • PDF
  • Description
  • Order

Product Description

41mmx13mm piezo speaker buzzer 2.83V 20khz DG41 anti mouse mosquito dog annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPG4113
Rated Voltage (Vrms)2.83
Operating Voltage (Vrms)20 Max
*Resonant Frequency (Hz)20000±500
Capacitance 120Hz (PF)140000±40%

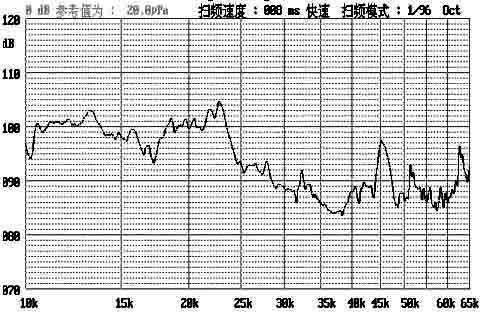

*Sound Output at 30cm (dB)≥95
Operating Temperature  (℃)-20～+70
Storage Temperature  (℃)-30～+80
Weight  (g)6
RohsYes

3
