Piezo Tweeter & Alarm Siren

Piezo siren & Alarm EPD-101 100V

  • Piezo siren & Alarm speaker for car auto,siren application-from Changzhou Esuntech Co.,Ltd.Model No.EPD-101Cone Material:ABSOut housing sizeΦ 54 mmVoltage (VP-P)MAX 100VS.P.L (dB)110 +5 dB-3 dBResonan

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPD-101
  • Description
  • Order

Product Description

Piezo siren & Alarm speaker for car auto,siren application-from Changzhou Esuntech Co.,Ltd.



Model No.EPD-101
Cone Material:ABS

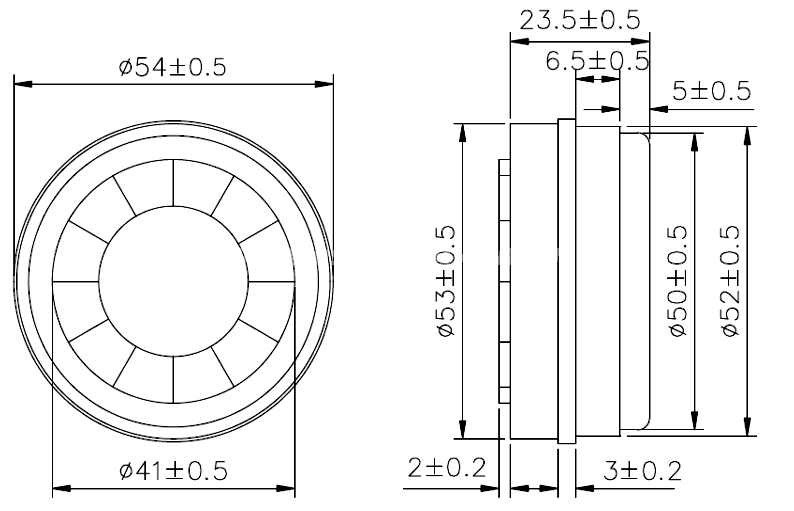

Out housing sizeΦ 54 mm
Voltage (VP-P)MAX 100V
S.P.L (dB)110 +5 dB
-3 dB
Resonant frequency Fr2.6±0.5KHz
Main electrostatic capacity Cm35000±30%pF
Resonant impedance R500Ω Max
Metal plate materialBrass
Metal plate size (D) mm35.0±0.1
Total height (T) mm0.5±0.05
Insulation resistance100MΩ Min
Operating temperature range-20℃ to +65℃
Storage temperature range-30℃ to +75℃
