Piezo Transducer

Piezo external-driver transducer EPF3916B-GA-12-3.2-R 6V 12V 3 pin buzzer

  • 39mmx16mm Piezo external-driver 3 pin transducer 6V 12V 24V 3200hz 3916 alarm annunciator feedback piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - C

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPF3916B-GA-12-3.2-R
  • Diameter: 39mmx16mm
  • PDF
  • Description
  • Order

Product Description

39mmx16mm Piezo external-driver 3 pin  transducer  6V 12V 24V 3200hz 3916 alarm annunciator feedback piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.



ModelEPF3916B-GA-12-3.2-R
Rated Voltage (VDC)12
Operating Voltage (VDC)6～20
*Rated Current (mA)≤18
*Sound Output at 10cm (dB)≥106
*Resonant Frequency (Hz) 3400±500
Operating Temperature (℃) -20 ～ +70
Storage Temperature (℃) -30 ～ +70
Weight (g) 9.1
Housing Material ABS
RoHSYes

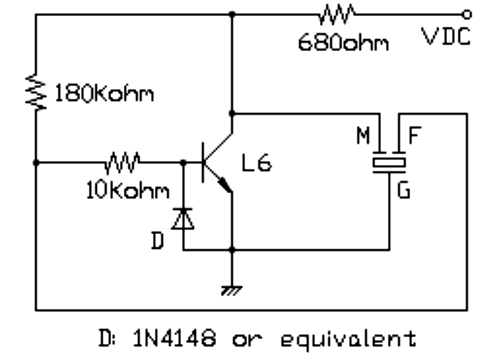

self-oscillation test circuit:
