Piezo Transducer

Piezo external-driver transducer EPF3380-TA-12-2.6-R 6V 12V 3 pin transducer

  • 33mmx8mm Piezo external-driver 3 pin transducer 6V 12V 24V 2600hz 3380 3308 alarm annunciator feedback piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPF3380-TA-12-2.6-R

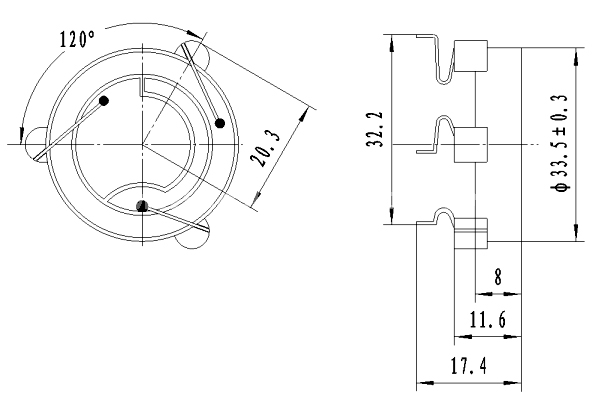

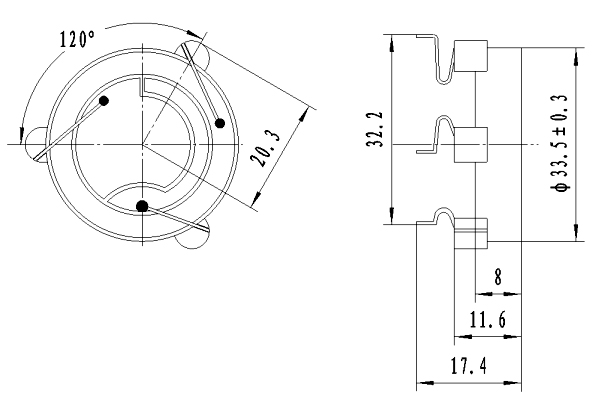

  • Diameter: 33mmx8mm
  • PDF
  • Description
  • Order

Product Description

33mmx8mm Piezo external-driver 3 pin  transducer  6V 12V 24V 2600hz 3380 3308 alarm annunciator feedback piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.



ModelEPF3380-TA-12-2.6-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～20
*Rated Current (mA)≤12
*Sound Output at 10 cm (dB)≥85
*Resonant Frequency (Hz)2600±500
Operating Temperature (℃)-20 ～ +65
Weight (g)1.8
Housing MaterialABS
RoHSYes

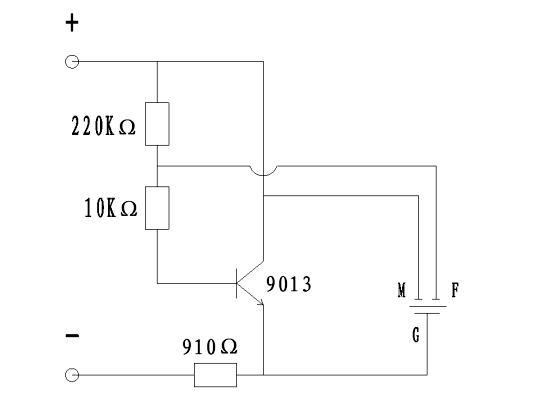

self-oscillation test circuit:
