Piezo Transducer

Piezo external-driver transducer EPF3010C-HO-12-3.0-R 6V 12V 3 pin transducer

  • 30mmx10mm Piezo external-driver 3 pin transducer 6V 12V 24V 3000hz 3010 3001 alarm annunciator feedback piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical appliance

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPF3010C-HO-12-3.0-R

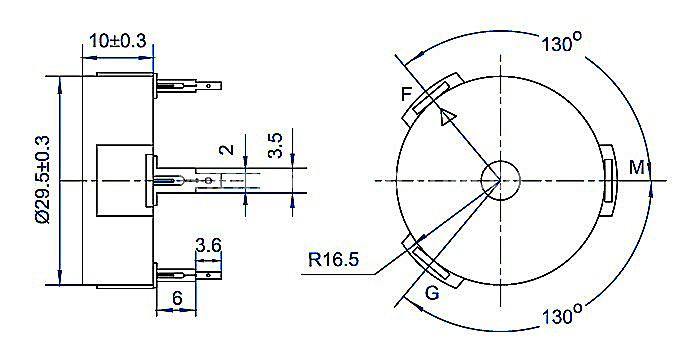

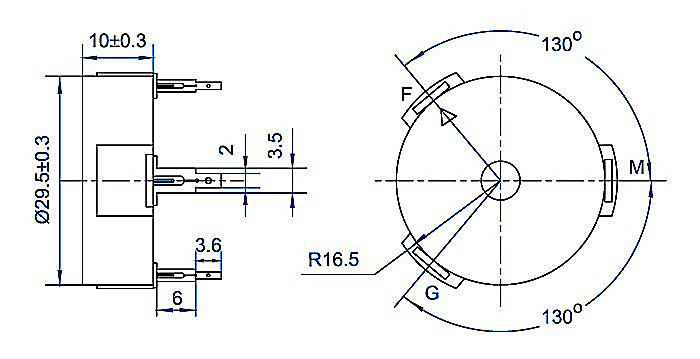

  • Diameter: 30mmx10mm
  • PDF
  • Description
  • Order

Product Description

30mmx10mm Piezo external-driver 3 pin  transducer  6V 12V 24V 3000hz 3010 3001 alarm annunciator feedback piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.



ModelEPF3010C-HO-12-3.0-R
Rated Voltage (VDC)12
Max Input Voltage (VDC)3～20
*Sound Output at 30cm (dB)≥85
*Oscillating frequency (Hz)3000±500
*Current Consumption (mA)≤15
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+70
Weight (g)5
Housing MaterialPPO
RoHSYes

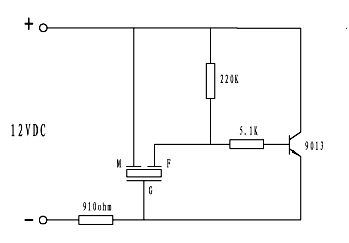

self-oscillation test circuit:
