Piezo Transducer

Piezo external-driver transducer EPF2965-TA-12-3.0-R 6V 12V 3 pin buzzer

  • 29mmx6.5mm Piezo external-driver 3 pin transducer 6V 12V 24V 3400hz 2580 2508 alarm annunciator feedback piezo transducer & buzzer high quality alarm buzzer,alarm for household electrical applianc

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPF2965-TA-12-3.0-R

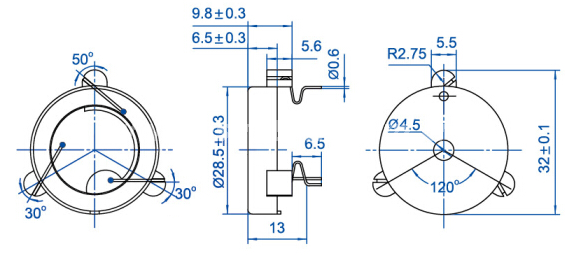

  • Diameter: 29mmx6.5mm
  • PDF
  • Description
  • Order

Product Description

29mmx6.5mm Piezo external-driver 3 pin  transducer  6V 12V 24V 3400hz 2580 2508 alarm annunciator feedback piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.



ModelEPF2965-TA-12-3.0-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～20
*Rated Current (mA)≤12
*Sound Output at 10 cm (dB)≥90
*Resonant Frequency (Hz)3000±500
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight (g)1.8
Housing MaterialABS
RoHSYes

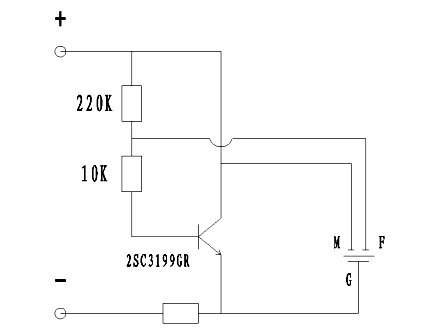

self-oscillation test circuit:
