Piezo Buzzer

Piezo electronic buzzer EPB3020B-TB-12-3.5-15.0-R 6V 9 V 12V anunciator buzzer

  • 30mmx20mm Piezo buzzer 6V 9V 12V 24V 3500hz 3015 alarm annunciator transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

30mmx20mm Piezo buzzer  6V 9V 12V 24V 3500hz 3015 alarm annunciator  transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

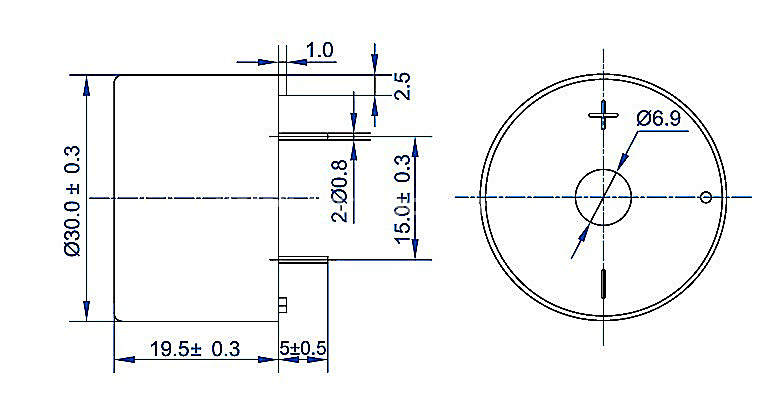

Model No.EPB3020B-TB-12-3.5-15.0-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～20
*Rated Current (mA)≤12
*Sound Output at 30cm (dB)≥100
*Resonant Frequency (Hz)3500±500
Operating Temperature (℃)-20～+80
Storage Temperature (℃)-30～+100
Weight (g)9.5
Housing MaterialPBT
RoHSYes

3
