Piezo Buzzer

Piezo electric buzzer EPB5029-TA-12-2.5-22.5-R big power buzzer

  • 50mmx29mm Piezo buzzer 3 pin continuous pulse tone 2500hz 5029 alarm annunciator transducer & buzzer high quality alarm buzzer,alarm for auto household electrical appliances - Changzhou Esuntech Co

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPB5029-TA-12-2.5-22.5-R

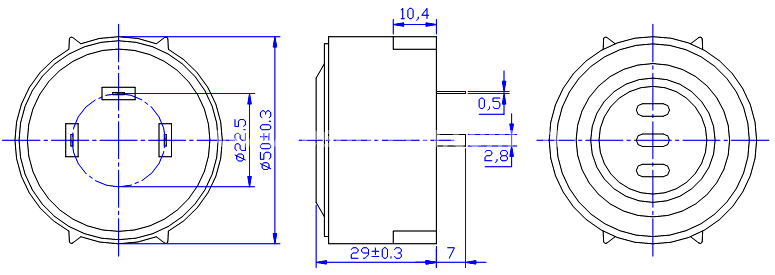

  • Diameter: 50mmx29mm
  • PDF
  • Description
  • Order

Product Description

50mmx29mm Piezo buzzer 3 pin continuous pulse tone 2500hz 5029 alarm annunciator  transducer & buzzer  high quality  alarm buzzer,alarm for auto household electrical appliances - Changzhou Esuntech Co Ltd.


ModelEPB5029-TA-12-2.5-22.5-R
Rated Voltage (VDC)12
Operating Voltage (VDC)5～13
*Rated Current (mA)≤75
*Sound Output at 30cm (dB)≥100
*Resonant Frequency (KHz)2.5±0.5
ToneSingle
Operating Temperature (℃)-20 ～ +60
Storage Temperature (℃)-30 ～ +70
Weight(g)40
RoHSYes
