Piezo Buzzer

Piezo electric buzzer EPB2418A 6V 9 V 12V annunciator buzzer

  • 24mmx16mm Piezo buzzer 6V 9V 12V 24V 2800hz 2418 alarm annunciator transducer & buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

24mmx16mm Piezo buzzer  6V 9V 12V 24V 2800hz 2418 alarm annunciator  transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

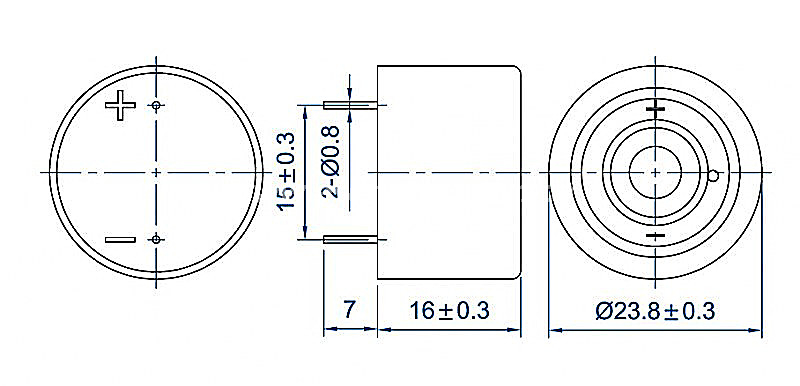

ModelEPB2418A-TB-12-2.8-15.0-R
Rated Voltage (VDC)12
Operating Voltage (VDC)3～20
*Rated Current (mA)≤25
*Sound Output at 10 cm (dB)≥90
*Resonant Frequency (Hz)2800±500
Operating Temperature (℃)-20 ～ +65
Storage Temperature (℃)-30 ～ +75
Weight (g)5.4
Housing MaterialPBT
RoHSYes

3
