Piezo Transducer

Piezo buzzer speaker EPG3012 high-output alarm transducer

  • 30mmx12mm piezo speaker buzzer 5.5V 25khz DG30 anti mouse mosquito dog annunciator passive piezo transducer & buzzer with wire high quality alarm buzzer,alarm for household electrical appliances - C

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPG3012

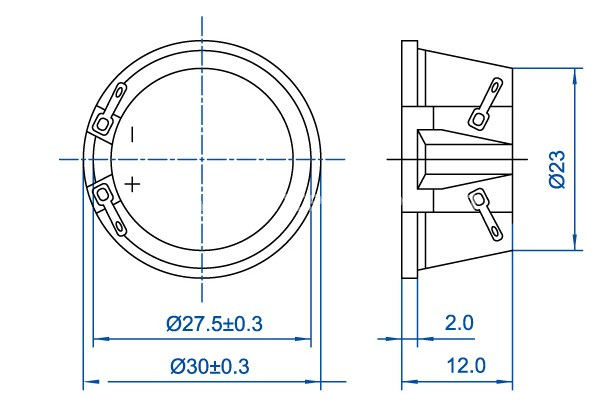

  • Diameter: 30mmx12mm
  • PDF
  • Description
  • Order

Product Description

30mmx12mm piezo speaker buzzer 5.5V 25khz DG30 anti mouse mosquito dog annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPG3012
Rated Voltage (Vrms)5.5
Operating Voltage (Vrms)30
*Resonant Frequency (Hz)25000±5000
Capacitance 120Hz (PF)2500~50000

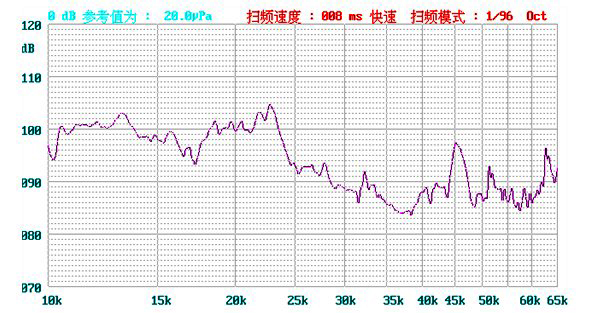

*Sound Output at 30cm (dB)≥90
Operating Temperature  (℃)-20～+70
Storage Temperature  (℃)-30～+80
Weight  (g)7
RohsYes
