Piezo Transducer

Piezo buzzer EPT3045W1103-TA-12-4.0-25-R wired transducer

  • 30mmx4.5mm wired buzzer 3V 6V 12V 4000hz 3045 alarm annunciator passive piezo transducer & buzzer with wire high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT3045W1103-TA-12-4.0-25-R

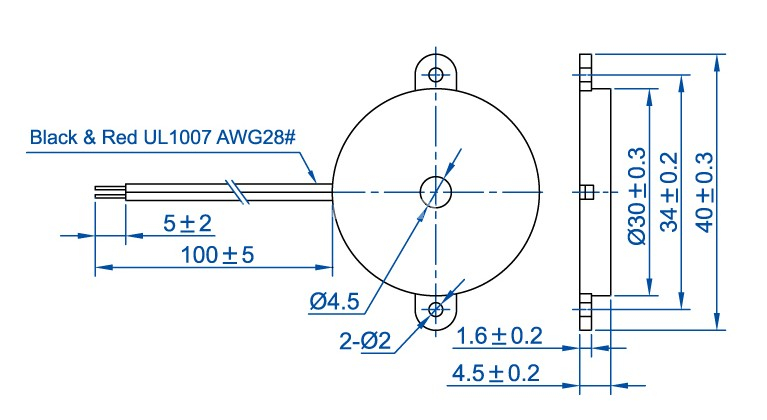

  • Diameter: 30mmx4.5mm
  • PDF
  • Description
  • Order

Product Description

30mmx4.5mm wired buzzer 3V 6V 12V 4000hz 3045   alarm annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPT3045W1103-TA-12-4.0-25-R
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)1～30
Resonant Frequency (Hz)4000±500
Capacitance 120Hz (pF)25000±30%

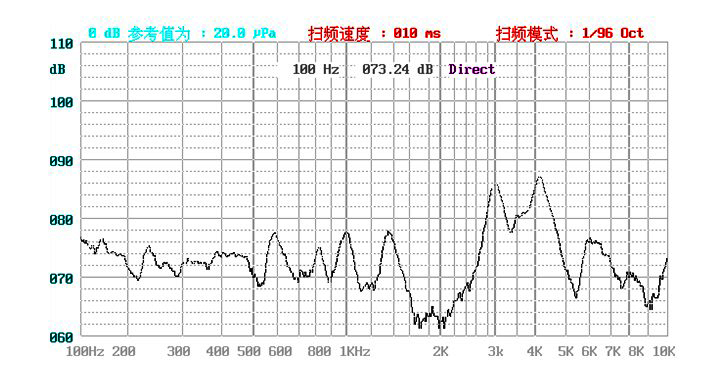

*Sound Output at 10cm (dB)≥90
*Current Consumption (mA)≤5
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-35～+70
Weight (g)4
RoHSYes
