Piezo Transducer

Piezo buzzer EPT3016W405-TA-09-3.4-R high-output alarm transducer

  • 36mmx16mm wired buzzer 3V 6V 12V 3400hz 3016 alarm annunciator passive piezo transducer & buzzer with wire high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech C

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT3016W405-TA-09-3.4-R

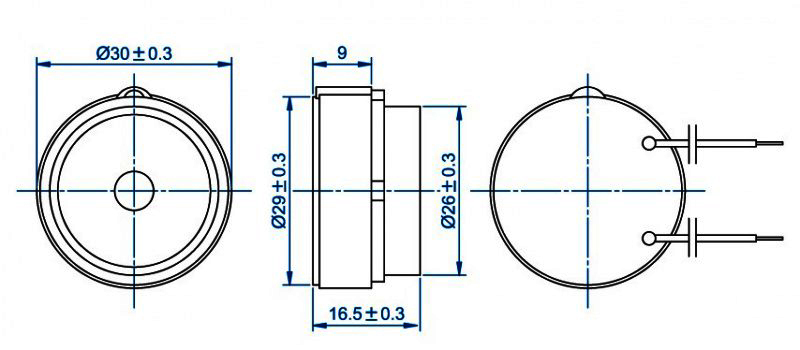

  • Diameter: 36mmx16mm
  • PDF
  • Description
  • Order

Product Description

36mmx16mm wired buzzer 3V 6V 12V 3400hz 3016  alarm annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


ModelEPT3016W405-TA-09-3.4-R
Rated Voltage (Vp-p)9
Operating Voltage (Vp-p)3～28
*Rated Current (mA)≤18
*Sound Output at 10cm (dB)≥95
*Resonant Frequency (KHz)3.4±0.5
Operating Temperature (℃)-20 ～ +60
Storage Temperature (℃)-30 ～ +70
Weight (g)8
RoHSYes

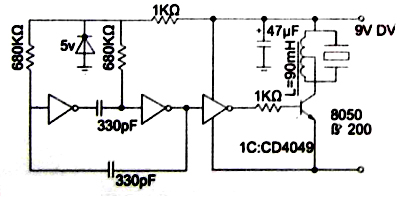

REFERENCE CIRCUIT
