Electro Magnetic Transducer

ohm magnetism buzzer

  • 25mmx12mm 12V 115 OHM 1000hz 2512 passive electromagnetic transducer & buzzer square buzzer Anunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co L

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET2512-120-1.0-115-10.0-R

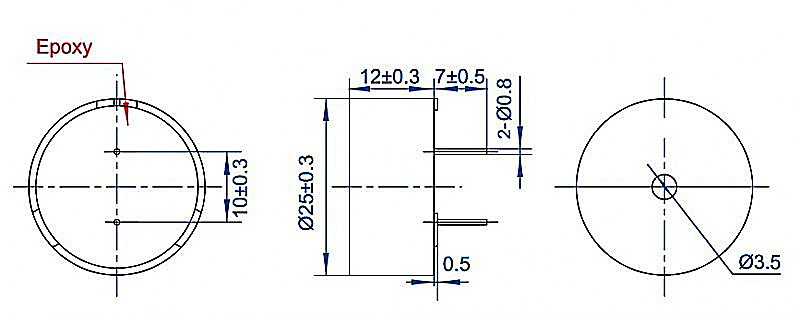

  • Diameter: 25mmx12mm
  • PDF
  • Description
  • Order

Product Description

25mmx12mm 12V  115 OHM 1000hz 2512  passive electromagnetic transducer & buzzer square  buzzer Anunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


ModelEET2512-120-1.0-115-10.0-R
Rated Voltage (V)12
Operating Voltage (V)7～14
Resonant Frequency (Hz)1000
Coil Resistance (Ω)115±12

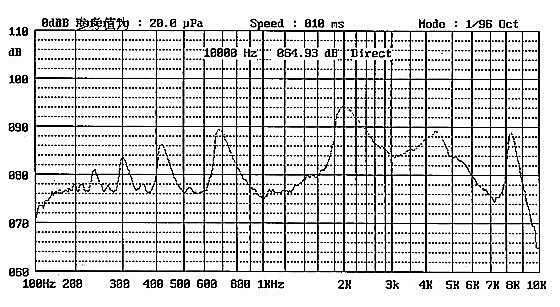

*Sound Output at 10cm (dB)90
*Current Consumption (mA)≤50
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)8
RohsYes

3
