Electro Magnetic Transducer

magnetic transducer EET1614 passive magnetic anunciator

  • 16mmx14mm 5V 45 OHM 2048hz 1614 passive electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Lt

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1614-050-2.048-45-7.6-R

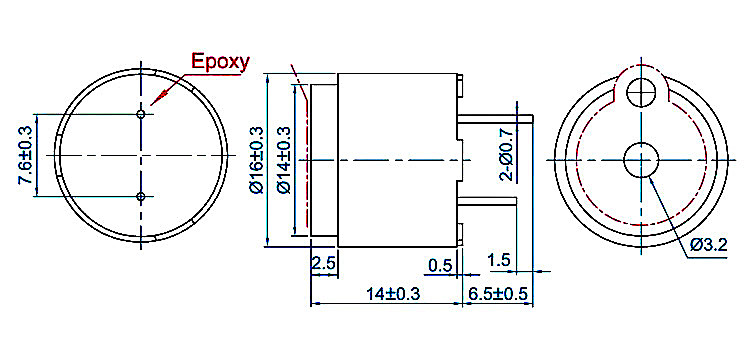

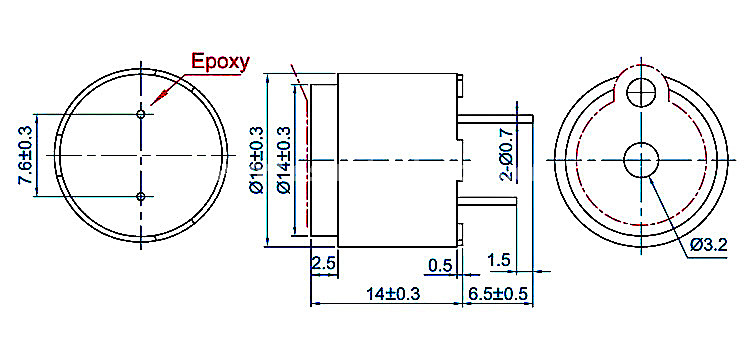

  • Diameter: 16mmx14mm
  • PDF
  • Description
  • Order

Product Description

16mmx14mm 5V  45 OHM 2048hz 1614  passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


ModelEET1614-050-2.048-45-7.6-R
Rated Voltage (V)5
Operating Voltage (V)3～7
Coil Resistance (Ω)45±6

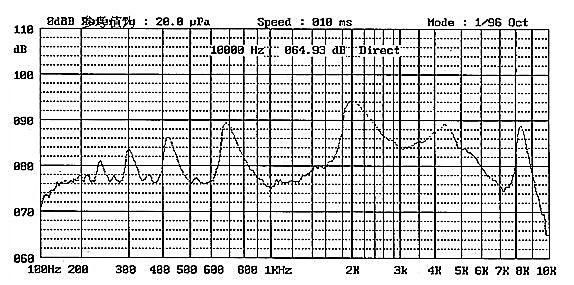

*Sound Output at 10cm (dB)≥90
*Current Consumption (mA)≤50
Resonant Frequency (Hz)2048
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+75
Weight (g)4.6
RohsYes
