Electro Magnetic Transducer

magnetic transducer EET1275B 1.5 volt High-Output Alarm buzzer

  • 12mmx7.5mm 1.5V 16 ohm 2731hz 1275 passive electromagnetic transducer & buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Mod

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1275B-1.50-2.731-16-6.5-R

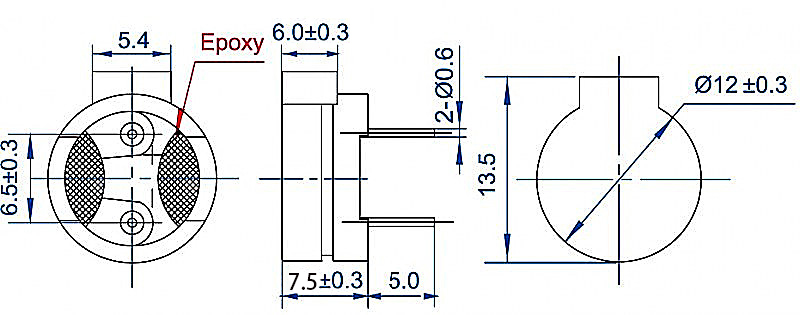

  • Diameter: 12mmx7.5mm
  • PDF
  • Description
  • Order

Product Description

12mmx7.5mm 1.5V   16 ohm 2731hz 1275  passive electromagnetic transducer & buzzer   buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.





3



ModelEET1275B-1.50-2.731-16-6.5-R
Rated Voltage (V)1.5
Operating Voltage (V)1～2
Resonant Frequency (Hz)2731
Coil Resistance (Ω)16±4
*Sound Output at 10cm (dB)Min 85
*Current Consumption (mA)≤30
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)1.5
RohsYes



3
