Electro Magnetic Transducer

magnetic buzzer EET1290 passive magnetic anunciator

  • 12mmx9mm 12V 140 OHM 2400hz 1290 1209 passive electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1290-120-2.4-140-6.5-LAB-R

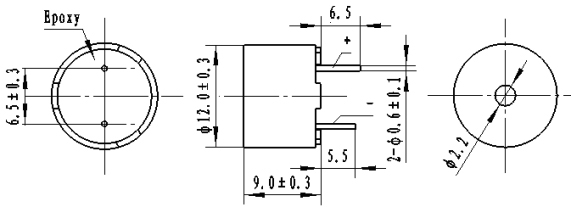

  • Diameter: 12mmx9mm
  • PDF
  • Description
  • Order

Product Description

12mmx9mm 12V  140 OHM 2400hz 1290 1209  passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.





2


ModelEET1290-120-2.4-140-6.5-LAB-R
Rated Voltage (Vo-p)12
Operating Voltage (Vo-p)7～16
Resonant Frequency (Hz)2400
Coil Resistance (Ω)140±16

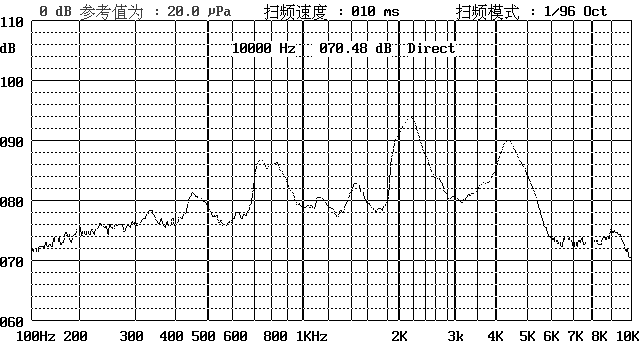

*Sound Output at 10cm (dB)≥90
*Current Consumption (mA)≤40
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)2
Rohs Yes
