Electro Magnetic Transducer

Electromagnetic buzzer EET1255 1.5V passive magnetic transducer

  • 12mmx5.5mm 1.5V 16 OHM 2040hz 1255 passive electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1255-1.50-2.048-16-6.5-R
  • Diameter: 12mmx5.5mm
  • PDF
  • Description
  • Order

Product Description

12mmx5.5mm 1.5V  16 OHM 2040hz 1255 passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

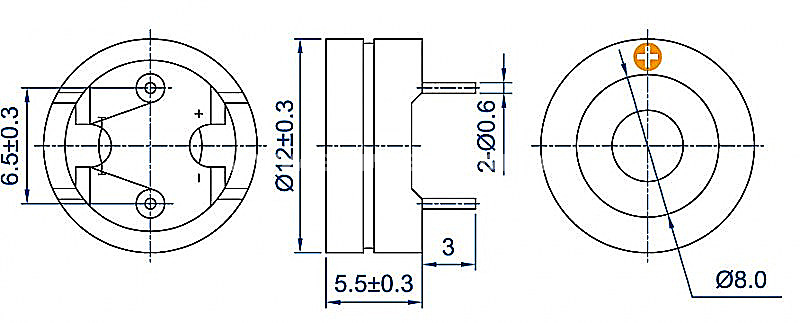

2

ModelEET1255-1.50-2.048-16-6.5-R
Rated Voltage (V)1.5
Operating Voltage (V)1～2
Resonant Frequency (Hz)2048
Coil Resistance (Ω)16±3
*Sound Output at 10cm (dB)≥80
*Current Consumption (mA)≤40
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)1.5
Housing MaterialPPO
ROHSYes

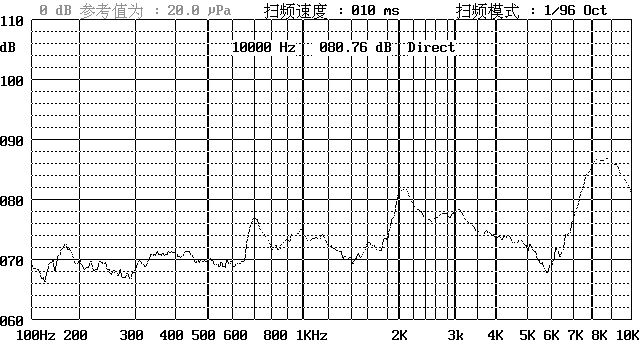

3
