Electro Magnetic Buzzer

Electromagnetic buzzer EEB9055A active magnetic transducer

  • 9mmx5.5mm 3V 6V 12V 2700hz 9055 active electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EEB9055A-050-2.7-5.0-R

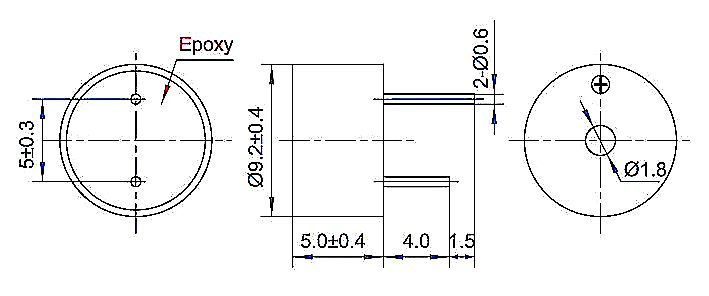

  • Diameter: 9mmx5.5mm
  • PDF
  • Description
  • Order

Product Description

9mmx5.5mm 3V  6V 12V 2700hz 9055 active electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.




ModelEEB9055A-050-2.7-5.0-R
Rated Voltage (VDC)5
Operating Voltage (VDC)3～7
*Resonant Frequency (Hz)2700±300
*Sound Output at 10cm (dB)≥85
*Current Consumption (mA)≤30
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)1
RohsYes
