Electro Magnetic Buzzer

Electromagnetic buzzer EEB1295 5V active magnetic buzzer

  • 12mmx9.5mm 5V 40 OHM 2048hz 1295 passive electromagnetic transducer & buzzer square buzzer Annunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Lt

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EEB1295-050-2.3-7.6-LAB-R

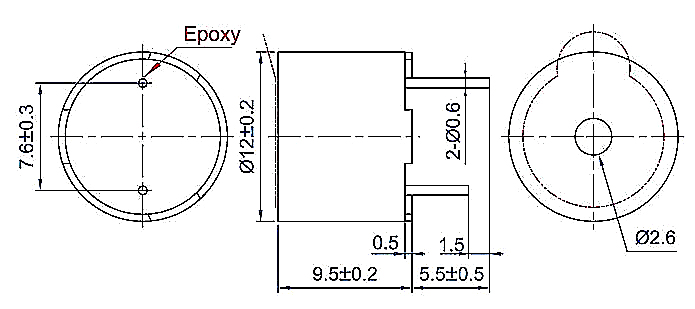

  • Diameter: 12mmx9.5mm
  • PDF
  • Description
  • Order

Product Description

12mmx9.5mm 5V  40 OHM 2048hz 1295 passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.





2


ModelEEB1295-050-2.3-7.6-LAB-R
Rated Voltage (VDC)5
Operating Voltage (VDC)3～5
*Resonant Frequency (Hz)2300±300
*Sound Output at 10cm (dB)≥85
*Current Consumption (mA)≤30
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)2
Housing MaterialPPO
ROHSYES


3
