Electro Magnetic Transducer

electro-magnetic transducer EET2513 low frequency magnetism buzzer

  • 25mmx13mm 12V 120 OHM 740hz 2513 passive electromagnetic transducer & buzzer square buzzer Anunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Lt

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET2513A-120-0.8-115-R
  • Diameter: 25mmx13mm
  • PDF
  • Description
  • Order

Product Description

25mmx13mm 12V  120 OHM 740hz 2513  passive electromagnetic transducer & buzzer square  buzzer Anunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

ModelEET2513A-120-0.8-115-R
Rated Voltage 12V
Operating Voltage 8～16V
Resonant Frequency(HZ)800

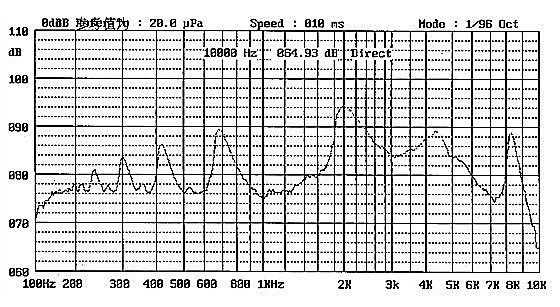

Sound Output at 10cm87--93dB
Rated Current≤55mA
Coil Resistance 120±16Ω
Operating Temperature (℃)-30~+75
Storage Temperature (℃)-40～+85
Weight (g)8
RohsYes
