Electro Magnetic Transducer

electro-magnetic transducer EET1614 115 ohm magnetism buzzer

  • 16mmx14mm 12V 115 OHM 2048hz 1614 passive electromagnetic transducer & buzzer square buzzer Anunciator high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co L

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EET1614D-120-2.048-115-7.6-R

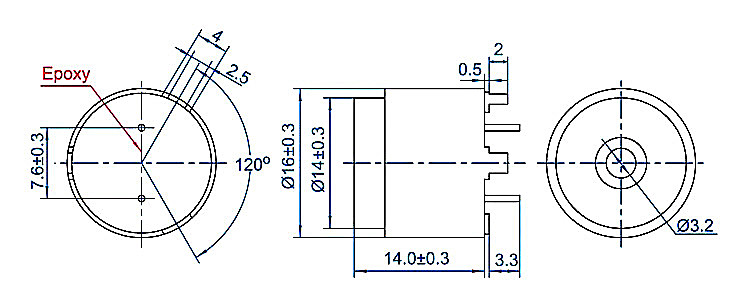

  • Diameter: 16mmx14mm
  • PDF
  • Description
  • Order

Product Description

16mmx14mm 12V  115 OHM 2048hz 1614  passive electromagnetic transducer & buzzer square  buzzer Anunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.







ModelEET1614D-120-2.048-115-7.6-R
Rated Voltage (V)12
Operating Voltage (V)7～15
Coil Resistance (Ω)115±10

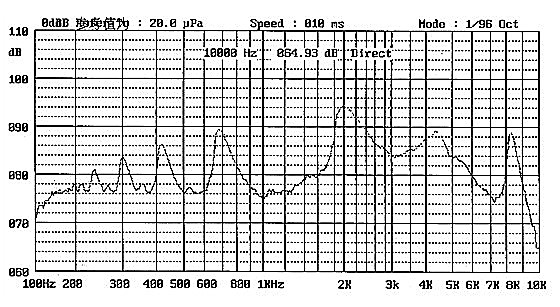

*Sound Output at 10cm (dB)≥90
*Current Consumption (mA)≤40
Resonant Frequency (Hz)2048
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+75
Weight (g)4.6
RohsYes
