Piezo Transducer

electricpiezo buzzer EPT3055DW-TA-12-1.3-20-R wired transducer

  • 30mmx5.5mm wired buzzer 3V 6V 12V 1300hz 3055 alarm annunciator passive piezo transducer & buzzer with wire high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT3055DW-TA-12-1.3-20-R

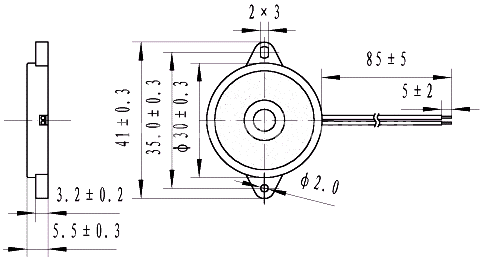

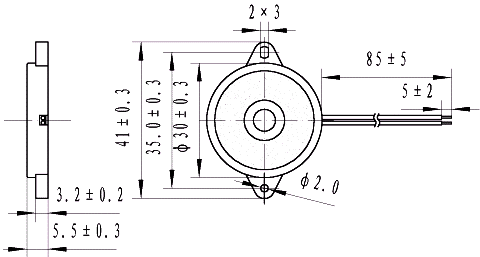

  • Diameter: 30mmx5.5mm
  • PDF
  • Description
  • Order

Product Description

30mmx5.5mm wired buzzer 3V 6V 12V 1300hz 3055   alarm annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPT3055DW-TA-12-1.3-20-R
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)3～24
Resonance Frequency (Hz)1300
Capacitance at 120Hz (pF)20000±30%

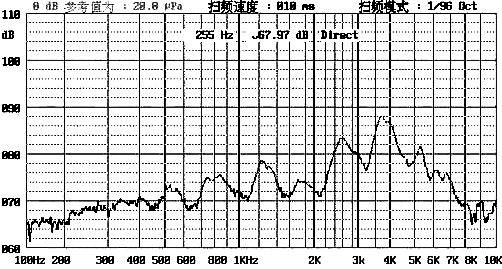

*Sound Output at 10cm (dB)≥80
*Current Consumption (mA)≤12
Operating Temperature (℃)-20～+60
Storage Temperature (℃)-30～+70
Weight (g)4
RoHSYes
