Microphone

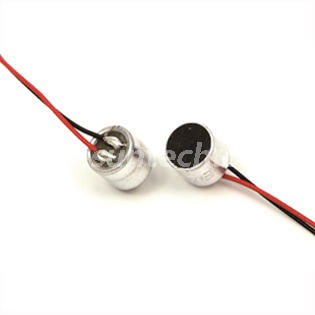

Omni-directional microphone EMC6050 microphone capsule

  • 6mmx5mm Omni-directional mini eletret microphone condenser mic capsule 6050 for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EMC6050
  • Description
  • Order

Product Description

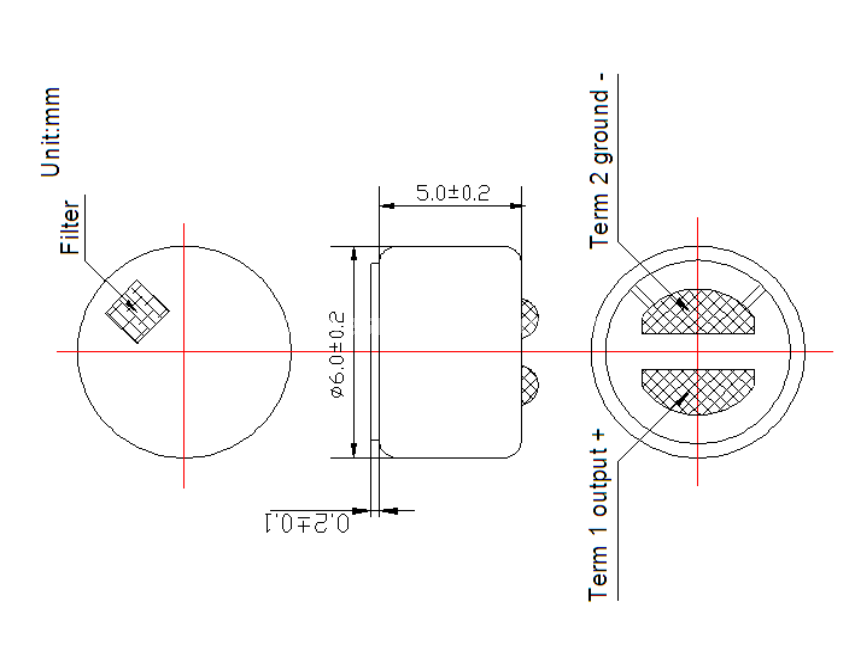

6mmx5mm  Omni-directional mini eletret microphone condenser mic capsule 6050  for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


Test Conditions：VS=4.5V，RL=2.2KΩ,Temp=20±2°C, R.H=60±5%

ITEMSymbolTest ConditionsMinStandardMaxUnit
Sensitivity  Sf=1KHz,-47-44-41    dB
S.P.L=1Pa0dB=1V/Pa
Impedance  Zf=1KHz, S.P.L=1Pa

2.2KΩ
Directivity                  Omni-directional
Current  Consumption  I


500μA
Operation Voltage Range VS
1210V
S/N Ratio S/N(A)f=1KHz, S.P.L=1Pa55

dB
A Curve
Decreacing Voltage Characteristic  △Sf=1KHz, S.P.L=1Pa

-3dB
VS=2.0-1.5V
Max.Input Sound Level MISPLf=1KHz,

110dB
Distortion≤3%

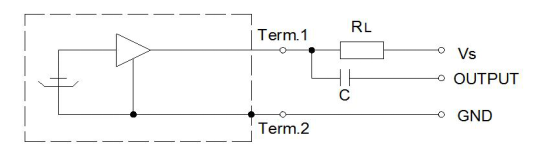

TEST CIRCIUT

Vs:Source Voltage 2.0 V   RL:Load Resistance 2.2KΩ

3

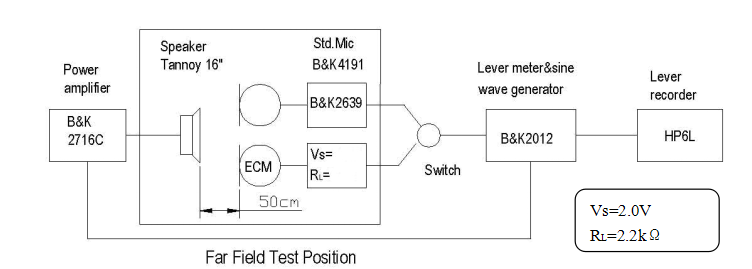

Test Setup Drawing

333
