Omni-directional microphone EMC6018 eletret microphone

  • 6mmx1.8mm Omni-directional mini eletret microphone condenser mic capsule 6018 for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instr

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EMC6018
  • Description
  • Order

Product Description

6mmx1.8mm  Omni-directional mini eletret microphone condenser mic capsule 6018  for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


Test Conditions：VS=4.5V，RL=2.2KΩ,Temp=20±2°C, R.H=60±5%

ITEMSymbolTest ConditionsMinStandardMaxUnit
Sensitivity  Sf=1KHz,-45-42-39   dB
S.P.L=1μBar0dB=1V/μBar
Impedance  Zf=1KHz,

2.2KΩ
S.P.L=1μBar
Directivity                  Omni-directional
Current  Consumption  I


500μA
Operation Voltage Range  VS
1210V
S/N Ratio S/N(A)f=1KHz,S.P.L=1Pa55

dB
A Curve
Decreacing Voltage Characteristic  △Sf=1KHz,S.P.L=1Pa

-3dB
VS=2.0-1.5V
Max.Input Sound Level MISPLf=1KHz,

110dB
Distortion<1%

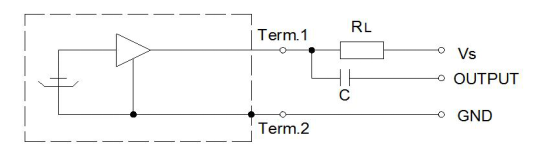

TEST CIRCIUT

Vs:Source Voltage 2.0 V   RL:Load Resistance 2.2KΩ

3

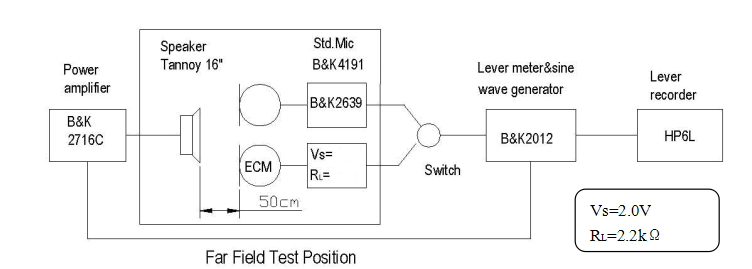

Test Setup Drawing

333
