Microphone

Omni-directional microphone EMC4015-SL eletret microphone

  • 4mmx1.5mm Omni-directional mini capacitive microphone condenser mic capsule 4015 for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter an

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • Description
  • Order

Product Description

4mmx1.5mm  Omni-directional mini capacitive microphone condenser mic capsule 4015  for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Test Conditions：VS=4.5V，RL=2.2KΩ,Temp=20±2°C, R.H=60±5%

Model EMC4015-GL
ITEM Symbol Test Conditions Min Standard Max
SensitivitydB(0dB=1V/Pa)   S f=1KHz,S.P.L=1Pa -45 -42 -39
Impedance(KΩ)   Z f=1KHz,S.P.L=1Pa 2.2
Directivity Omni-directional
Current  Consumption(μA)   I 500
Operation Voltage Range(V)   VS 1 2 10
S/N Ratio(dB)  S/N(A) f=1KHz, S.P.L=1Pa,A Curve 55
Decreacing Voltage Characteristic(dB)   △S f=1KHz, S.P.L=1Pa,VS=4.5-3.0V -3
Max.Input Sound Level(dB)  MISPL f=1KHz,Distortion≤3% 110

4

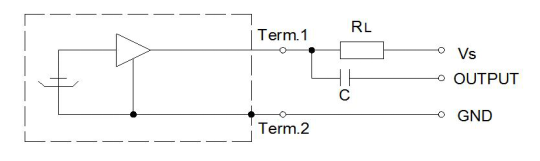

TEST CIRCIUT

Vs:Source Voltage 2.0 V   RL:Load Resistance 2.2KΩ

3

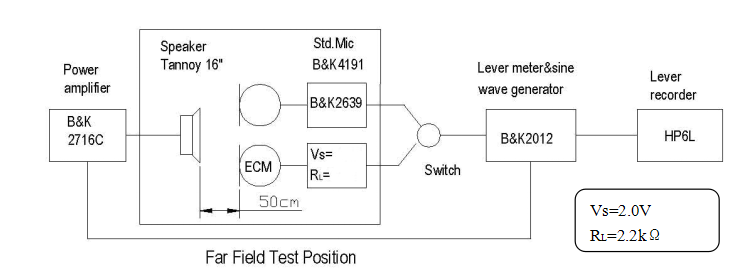

Test Setup Drawing

333
