Receiver

receiver ERV4617-R

  • 46mmx17.5mm CAV transducer wired receiver 4617 125 OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esunte

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ERV4617-R

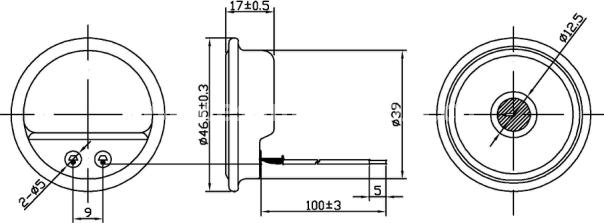

  • Diameter: ​46mmx17.5mm
  • PDF
  • Description
  • Order

Product Description

46mmx17.5mm CAV transducer wired receiver 4617  125 OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model NoERV4617-R
Rated Voltage24Vp-p
Operating Voltage range1~30 Vp-p
Coil Resistance23Ω±10%
AC Impedance at 1kHz125Ω±25%
SPL at 1m≥105dB
Sensitivity at 1kHz 60mV118±3dB (IEC318)
Frequency range300~3400Hz
Current30mA
Operating Temperature-40~+85℃
Storage Temperature-50~+95℃
Housing MaterialAluminum
Terminal MaterialSn Plated Copper
Weight34g
