Receiver

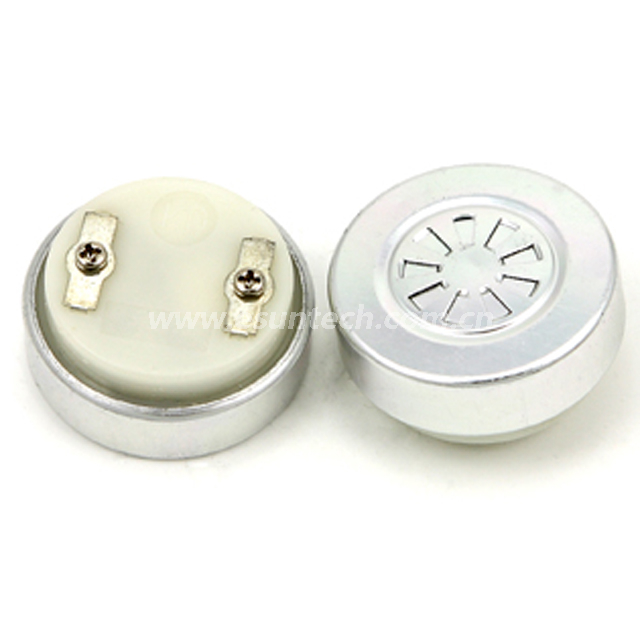

receiver ERV35180MB 35mm SD-1A

  • 35mmx18mm SD-1A receiver 3518 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntec

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ERV35180MB(SD-1A)
  • Diameter: Φ35*18.5mm
  • PDF
  • Description
  • Order

Product Description

35mmx18mm SD-1A receiver 3518 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

HTB1TuTsKFXXXXbDXpXX760XFXXXN

MODEL NOERV35180MB(SD-1A)

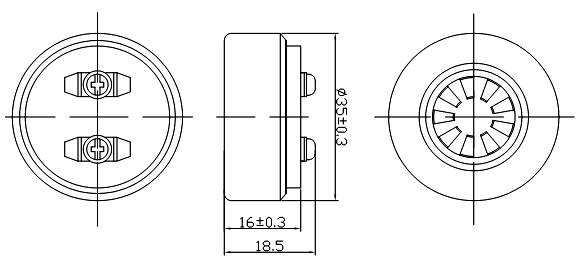

DiameterΦ35*18.5mm
RATED POWER30mW.
MAX POWER50mW.
Input voltage60mV (Sine wave) measured with IEC318 coupler
Impedance150±20% Ω(@ 1KHz 1V)
SOUND PRESSURE LEVEL95±3dB SPL @1KHz (0dB SPL=20μPa)

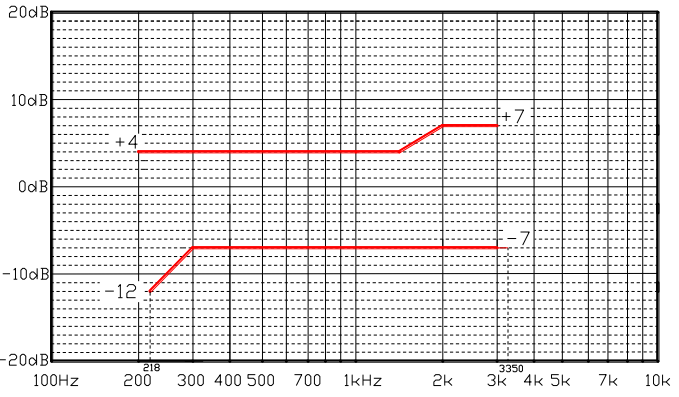

THDless than 5% at 300Hz-3400Hz

3
