Receiver

receiver ERV35170

  • 35mmx17.5 mm SD150 receiver 3517 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esun

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ERV35170
  • Diameter: Φ35*17.5mm
  • PDF
  • Description
  • Order

Product Description

35mmx17.5 mm SD150 receiver 3517 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

MODEL NOERV35170

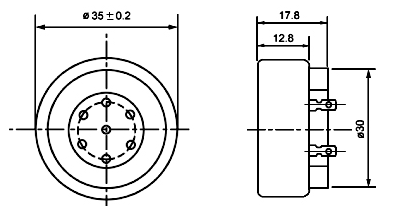

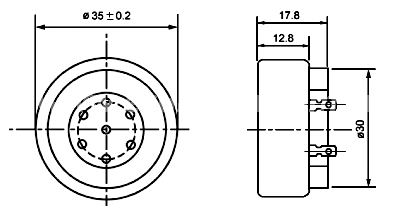

DiameterΦ35*17.5mm
RATED POWER10mW.
MAX POWER30mW.
Input voltage60mV (Sine wave) measured with IEC318 coupler
Impedance300±20% Ω(@ 1KHz)

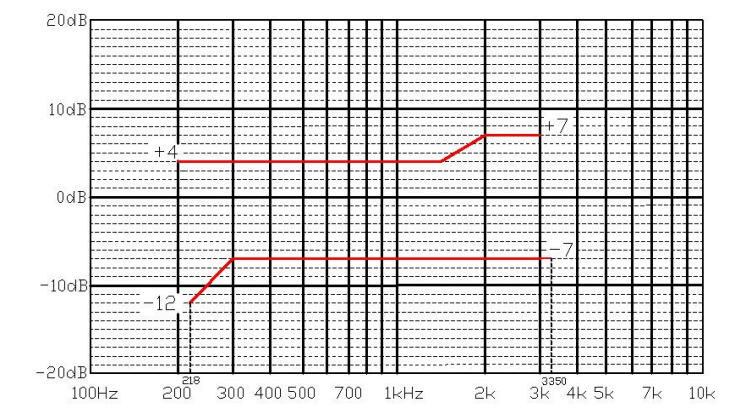

SOUND PRESSURE LEVEL94±3dB SPL @1KHz (0dB SPL=20μPa)
THDless than 5% at 300Hz-3400Hz
