Product Description

35mmx17.5mm SD15TH receiver 3518 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

MODEL NOERV35175MB(SD150TH)

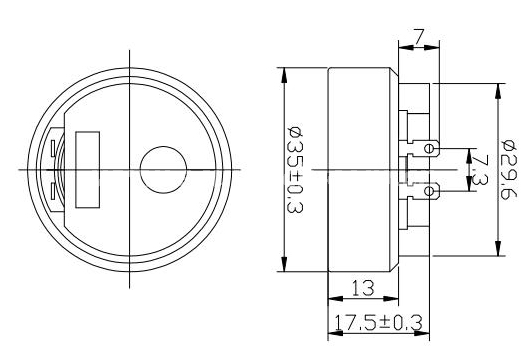

DiameterΦ35*17.5mm
RATED POWER10mW.
MAX POWER30mW.
Input voltage60mV (Sine wave) measured with IEC318 coupler
Impedance300±20% Ω(@ 1KHz)
SOUND PRESSURE LEVEL94±3dB SPL @1KHz (0dB SPL=20μPa)

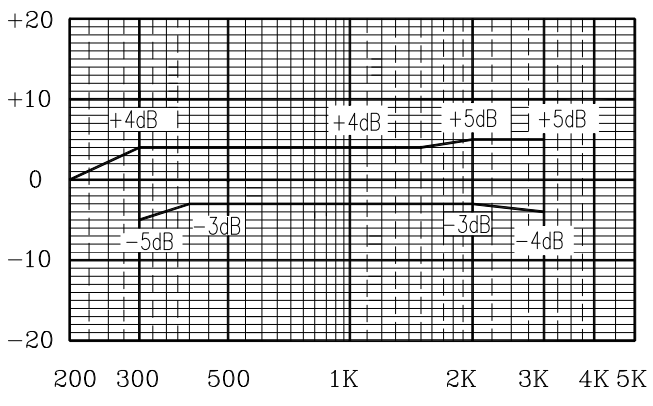

THDless than 5% at 300Hz-3400Hz
