Receiver

receiver ERV31110(SD31)

  • 31mmx11mm SD31 receiver 3110 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ERV31110
  • Diameter: Φ31*11mm
  • PDF
  • Description
  • Order

Product Description

31mmx11mm SD31 receiver 3110 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

MODEL NOERV31110

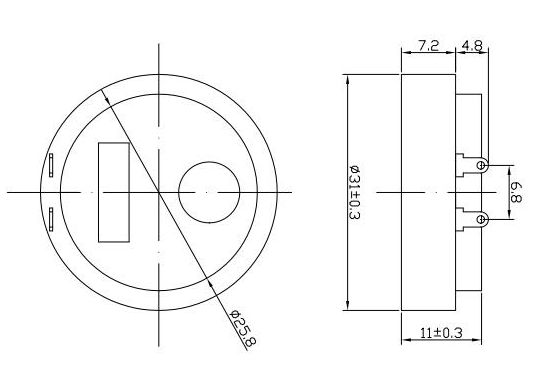

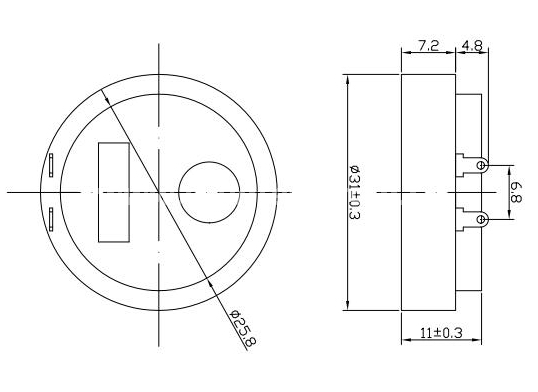

DiameterΦ31*11mm
RATED POWER10mW.
MAX POWER30mW.
Input voltage60mV (Sine wave) measured with IEC318 coupler
Impedance150±20% Ω(@ 1KHz 1V)

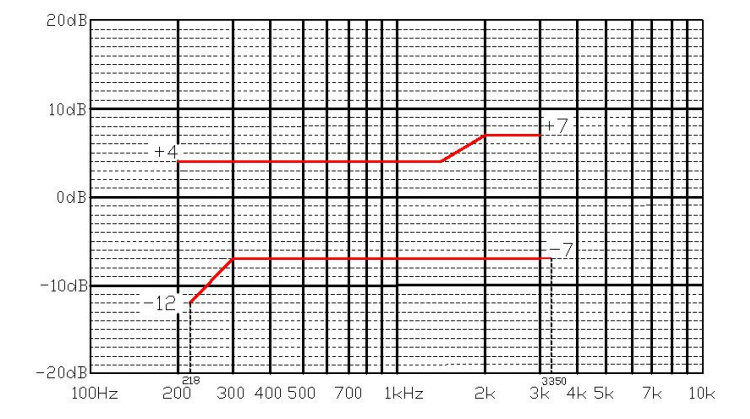

SOUND PRESSURE LEVEL93±2dB SPL @1KHz (0dB SPL=20μPa)
THDless than 5% at 200Hz-3400Hz
